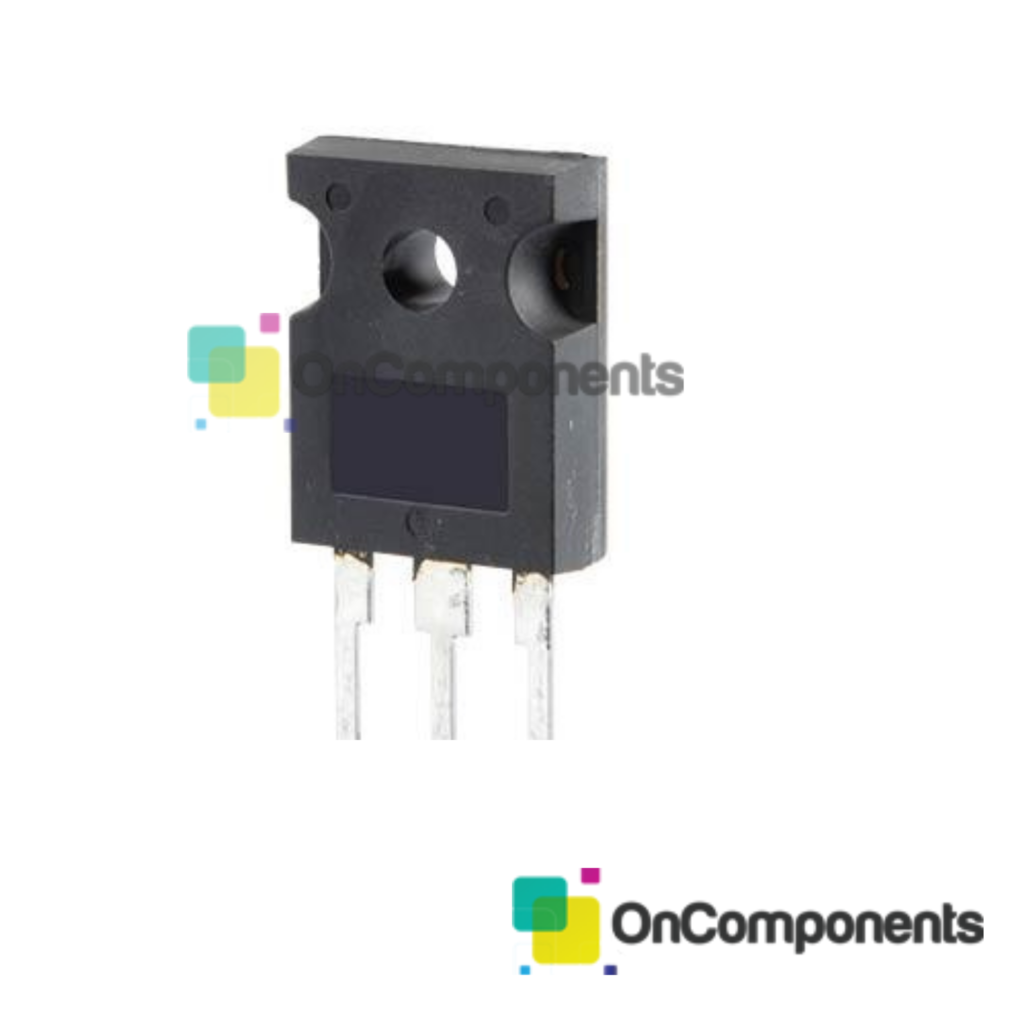

20N60B3D TO-247

Description:
The 20N60B3D (HGTG20N60B3D) is an N-channel IGBT from ON Semiconductor, rated at 600V and 20A in a TO-247 package. With a 165W power rating and 160A pulse current capability, it’s well-suited for motor drives, power conversion, and industrial switching applications.

Product Specification:

• Model: 20N60B3D (HGTG20N60B3D)
• Brand: ON Semiconductor
• Device Type: IGBT Transistor (N-Channel)
• Design: IGBT Chip
• Collector-Emitter Voltage (Uceo): 600V
• Collector Current (Ic): 20A
• Pulse Collector Current (Icpuls): 160A
• Power Dissipation (Ptot): 165W
• Gate Threshold Voltage (Uge(th)): 6V
• Turn-Off Delay (td off): 275 ns
• Turn-On Delay (td on): 25 ns
• Package: TO-247
• Package Weight: 0.004 kg
• RoHS: Compliant
• EAN/GTIN: 9900002170743
