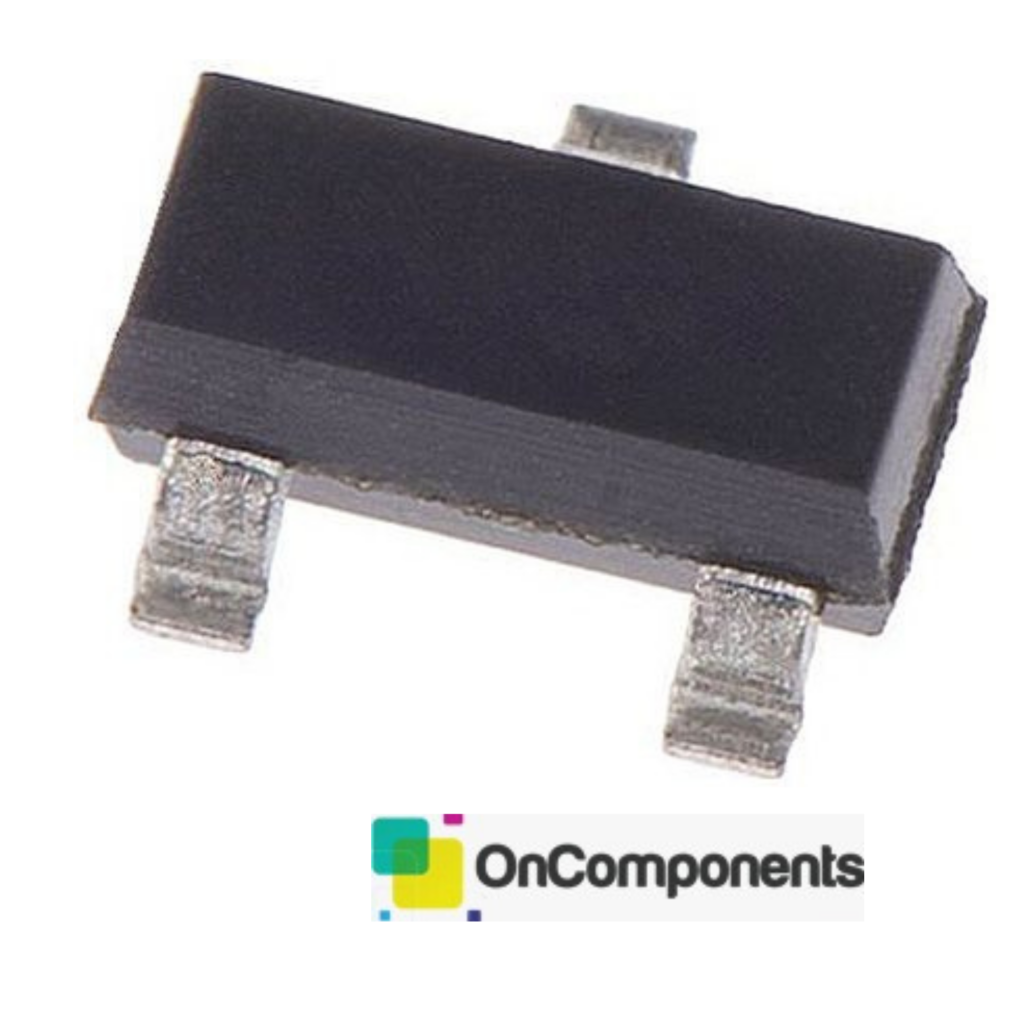

2N7002-7-F

3.00 د.إ5.00 د.إ
Case/PackageSOT-23
Contact PlatingTin
MountSurface Mount
Number of Pins3
Weight7.994566 mg
Technical
Continuous Drain Current (ID)115 mA
Current115 A
Current Rating115 mA
Drain to Source Breakdown Voltage70 V
Drain to Source Resistance5 ?
Drain to Source Voltage (Vdss)60 V
Dual Supply Voltage60 V
Element ConfigurationSingle
Fall Time5.6 ns
Gate to Source Voltage (Vgs)20 V
Input Capacitance50 pF
Max Junction Temperature (Tj)150 ?C
Max Operating Temperature150 ?C
Max Power Dissipation300 mW
Min Operating Temperature-55 ?C
Nominal Vgs2.5 V
Number of Channels1
Number of Elements1
PackagingCut Tape
Power Dissipation300 mW
Rds On Max7.5 ?
Resistance7.5 ?
Rise Time3 ns
Schedule B8541210080
TerminationSMD/SMT
Threshold Voltage2.5 V
Turn-Off Delay Time7.6 ns
Turn-On Delay Time2.8 ns
Voltage60 V
Voltage Rating (DC)60 V
Dimensions
Height1 mm
Length2.9 mm
Width1.3 mm
Compliance
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo SVHC
RoHSCompliant
