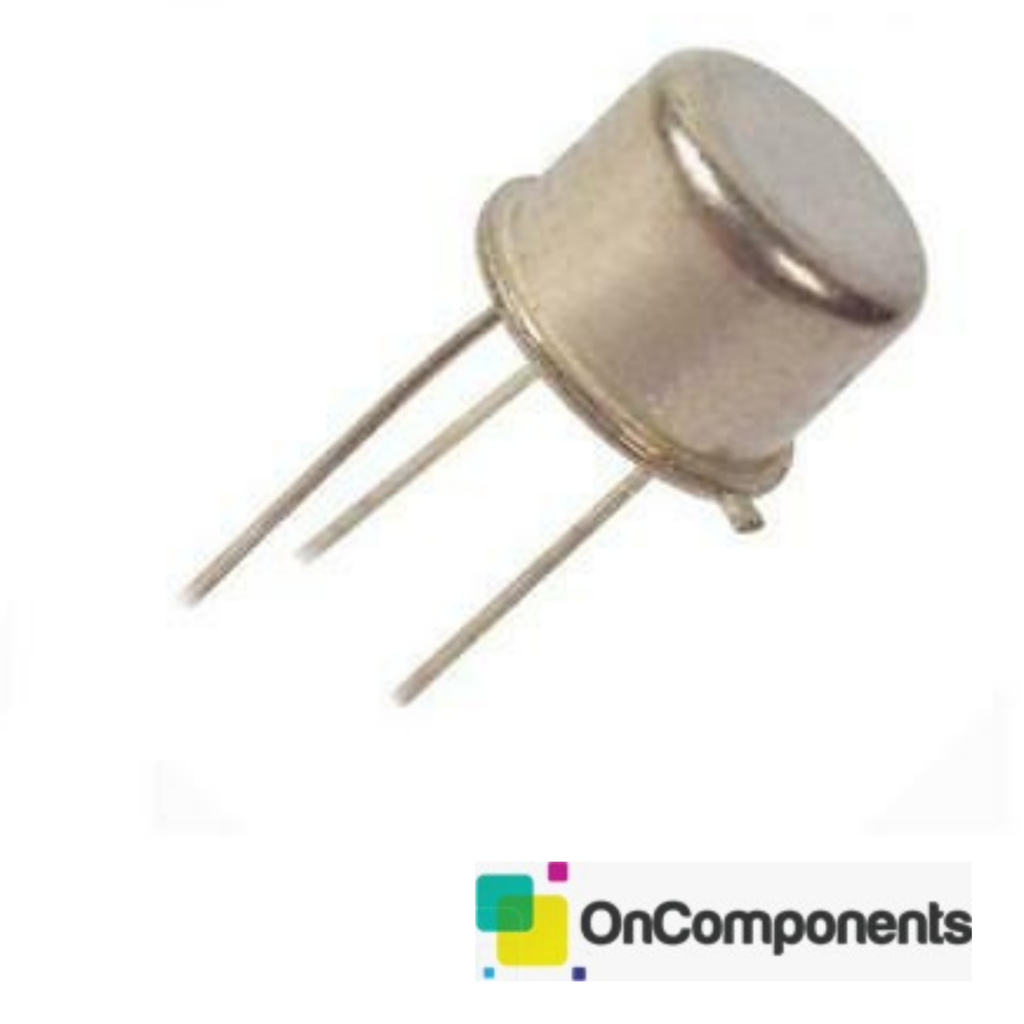

| Type | Transistor Silicon NPN | |
| EAN | 5052406520328 | |
| Case | TO39 | |
| Vbr CBO | 200 | |
| Vbr CEO | 200 | |
| Max. PD (W) | 700m | |
| C(ob) (F) | 6.0p | |
| Derate (Amb) (W/?C) | 4.8m | |
| hfe | 360 | |
| Ic Max. (A) | 100m | |
| Icbo Max. @Vcb Max. (A) | 5.0u | |
| Polarity | NPN | |
| Trans. Freq (Hz) Min. | 20.M | |
| @VCE (test) (V) | 10 | |
| Oper. Temp (?C) Max. | 175 | |
| @Ic (A) | 50m | |
| Pinout Equivalence Number | 3-12 | |
| Pkg Style | TO-5 | |
| Surface Mounted Yes/No | NO | |
| Maximum Collector Power Dissipation (Pc) | 0.7 W | |
| Maximum Collector-Base Voltage |Vcb| | 200 V | |
| Maximum Collector-Emitter Voltage |Vce| | 200 V | |
| Maximum Emitter-Base Voltage |Veb| | 4 V | |
| Maximum Collector Current |Ic max| | 0.1 A | |
| Max. Operating Junction Temperature (Tj) | 175 ?C | |
| Collector Capacitance (Cc) | 12 pF | |
| Transition Frequency (ft): | 10 MHz | |
| Forward Current Transfer Ratio (hFE), MIN | 360 | |
