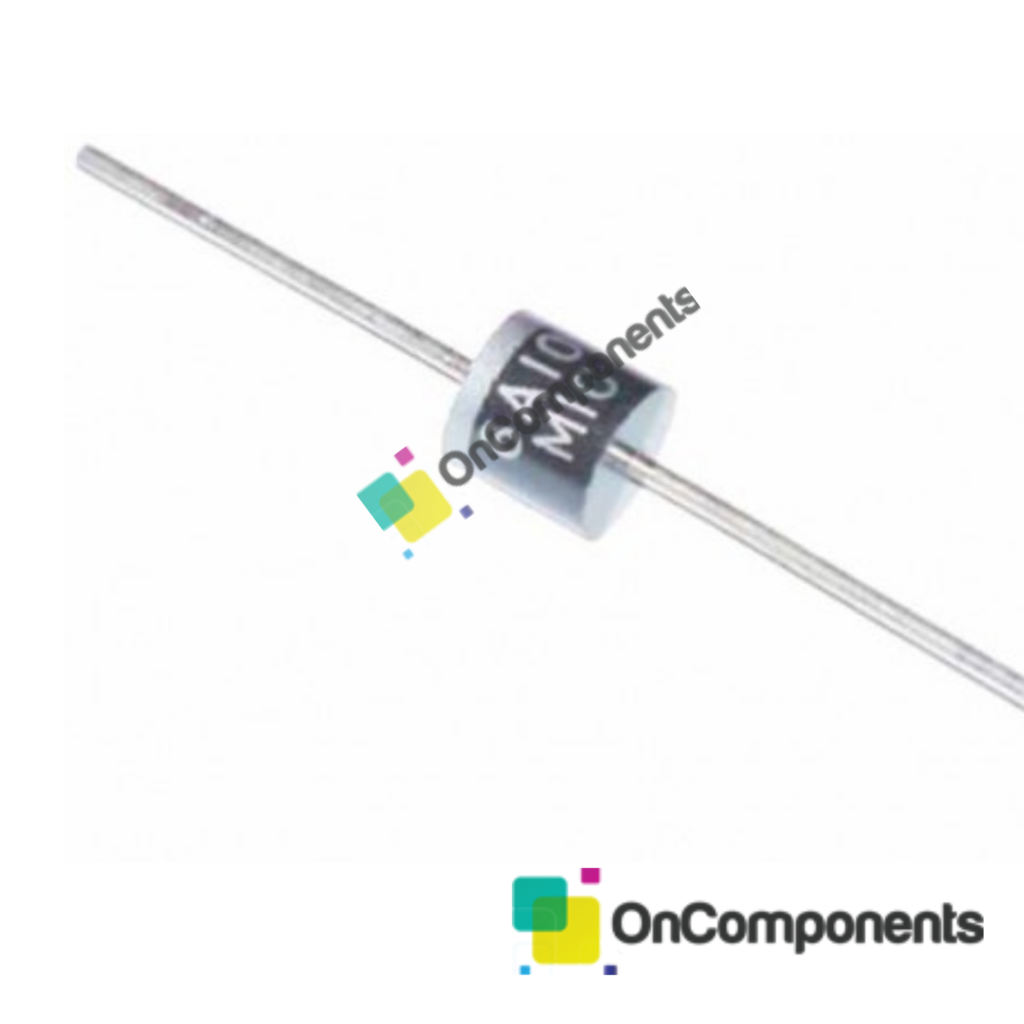

6A10 DIODE

Features of 6A10 Rectifier Diode:-

• High Surge Current Capability
• Low Leakage and Forward Voltage Drop
• Lead Free Finish, RoHS Compliant
• Maximum Recurrent Peak Reverse Voltage VRRM 1000V
• Maximum RMS Voltage VRMS 700V
• Maximum DC Blocking Voltage VDC 1000V
• Operating and Storage Temperature Range Tj, TSTG -65 to +175 ?C

Mechanical Features of 6A10 Rectifier Diode:-

• Case: R-6
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0? Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish Tin. Axial Leads, Solderable per MILSTD-202, Method 208
• Polarity: Color Band Indicates Cathode
• Approximate Weight: 2.1 grams
