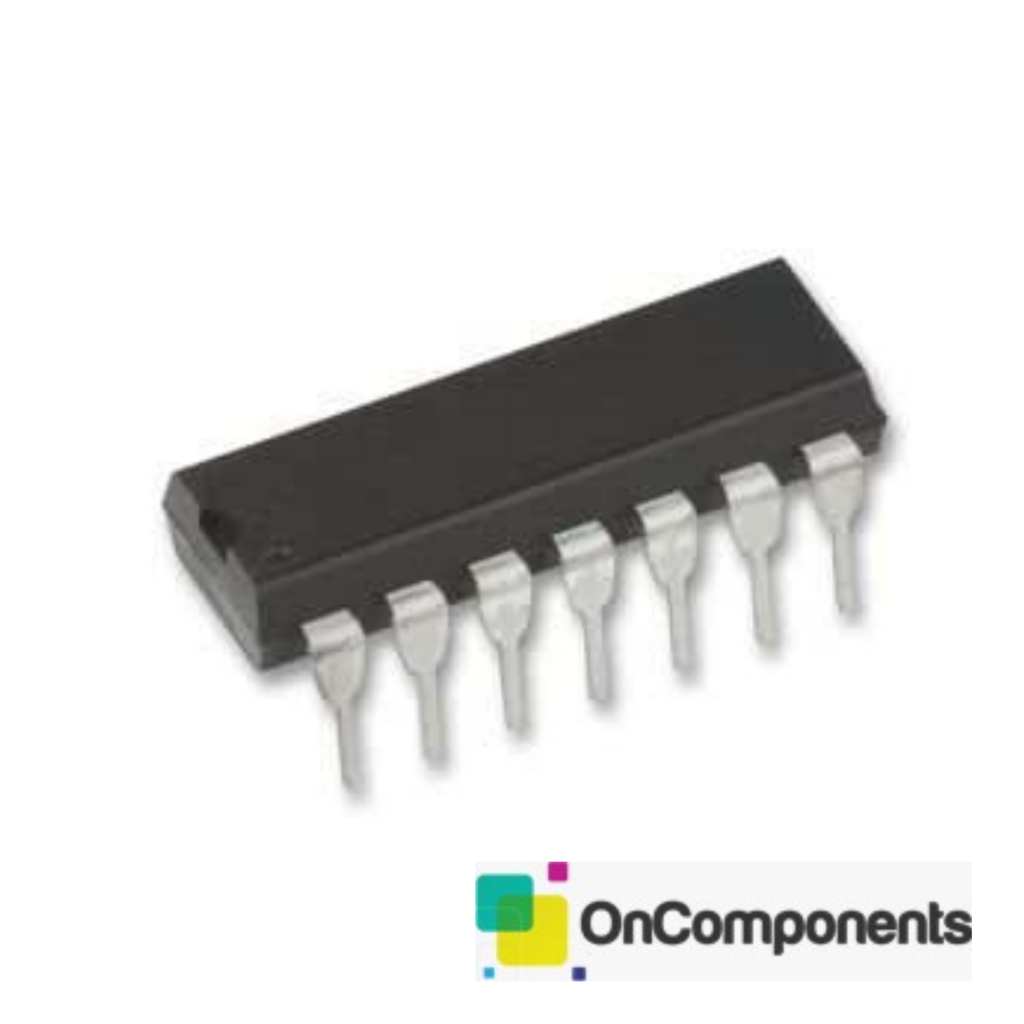

74HC10N DIP IC

Product description

TRIP 3-INPUT NAND GATE, DIP-14; Logic Family / Base Number:74HC10; Logic Type:NAND; Output Current:5.2mA; No. of Inputs:3; Supply Voltage Min:2V; Supply Voltage Max:6V; Logic Case Style:DIP; No. of Pins:14Pins; Logic IC Family:74HC ;RoHS Compliant: Yes

Product type: 3 input NAND Gate
IC Number: 7410
Number of gate or circuit: 3
Number of inputs: 3
Pin counts: 14
Pin type: through hole
Package: PDIP-14
Package contains: 1 x 7410 IC (Original)
Specification
- Voltage supply: 4.75V-5.25V
- Typical voltage supply: 5V
- Low-level input voltage: 0.8V
- High-level input voltage: 2V
- Low-level output current: 16mA
- High-level output current: -0.4mA
- TTL compatible
