Positive Voltage Regulators
Surface Mount

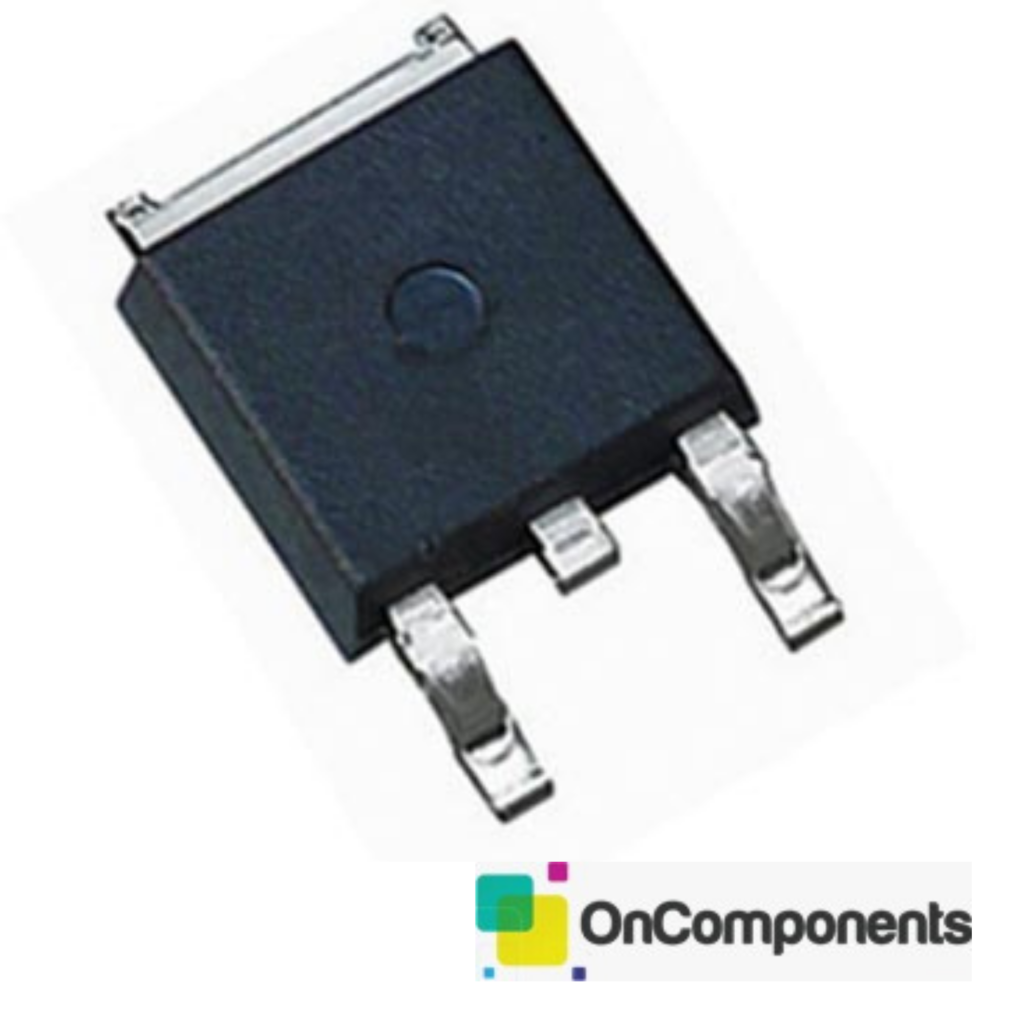

The MC78M05BDTRK is a three terminal positive voltage regulator for use as local, on-card voltage regulation. This component has internal current limiting, thermal shutdown circuitry and safe-area compensation which make it very durable under most operating conditions.
Features:
– No External Components Required
– Internal Thermal Overload Protection
– Internal Short Circuit Current Limiting
– Output Transistor Safe?Area Compensation
– High Accuracy (?2%)
Electrical Characteristics
(VI = 10 V, IO = 350 mA, TJ = Tlow to Thigh, PD ? 5W TJ=25?C unless otherwise noted):
Input Voltage (TA=25?C): 35V max.
Output Voltage: 4.8V to 5.2V
Line Regulation (7.0 Vdc ? VI ? 25 Vdc, IO = 200 mA): 3.0mV typ.
Load Regulation (5.0 mA ? IO ? 500 mA): 20mV typ.
Input Bias Current: 3.2mA typ.
Output Noise Voltage (TA = 25?C, 10 Hz ? f ? 100 kHz): 40uV typ.
Ripple Rejection (IO = 100 mA, f = 120 Hz, 8.0 V ? VI ? 18 V): 62dB min.
Dropout Voltage: 2.0V typ.
Short Circuit Current Limit (VI = 35 V): 350mA typ.
Peak Output Current: 700mA typ.
Manufactured by: ON Semiconductor
Part Number: MC78M05BDTRK
