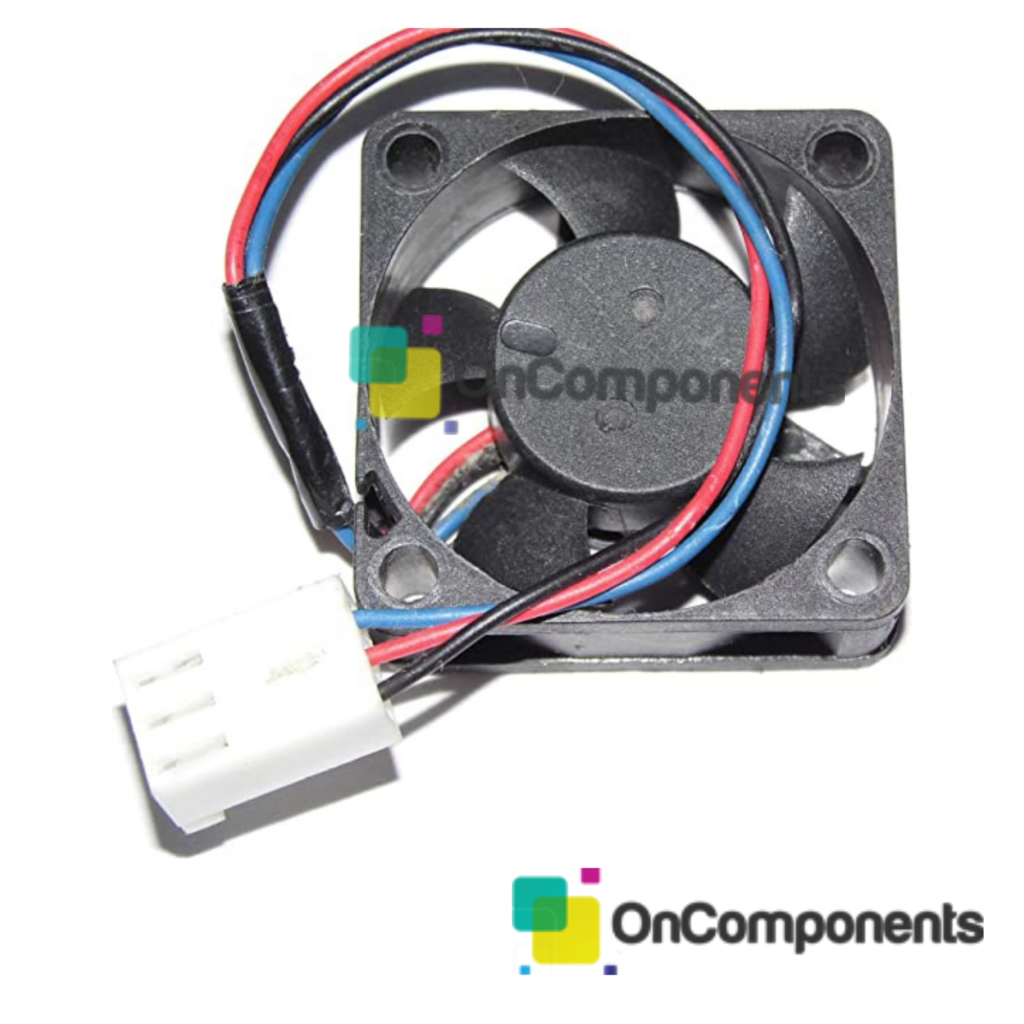

AFB0312HA 30X30X10MM 12VDC FAN

AFB0312HA Fan Tubeaxial 12VDC Square – 30mm L x 30mm H Ball 3.5 CFM (0.098m³/min) 2 Wire Leads,
1.08 W Noice :25.0dB(A) ,AFB0312HA.

Specifications

• Manufacturer : Delta Electronics

• Series : AFB
• Product Status :Not For New Designs

• Voltage – Rated: 12VDC
• Air Flow :3.5 CFM (0.098m³/min)

• Static Pressure :0.100 in H2O (24.9 Pa)

• Bearing Type: Ball

• Fan Type: Tubeaxial

• Features: Locked Rotor Protection

• Noise: 25.0dB(A)

• Power (Watts) :1.08 W

• RPM: 9000 RPM

• Termination: 2 Wire Leads

• Ingress Protection-

• Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)

• Approval Agency: CE, CSA, UL, VDE

• Current Rating (Amps): 0.090A

• Voltage Range: 9.5 ~ 13.8VDC

• Material : Frame: Plastic

• Material : Blade Plastic

• Lifetime @ Temp : 30000 Hrs @ 40°C
• Dimension :  30 x 30 x 10mm
• Weight : 20g
