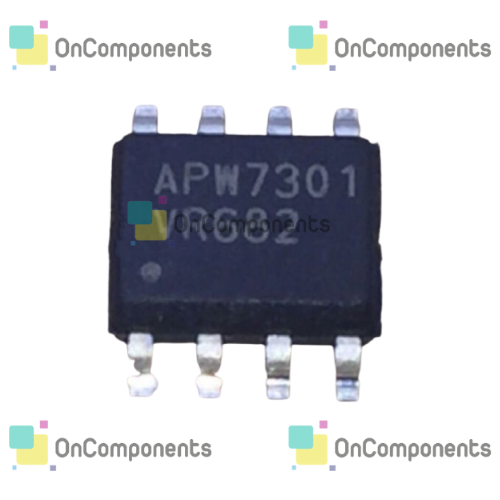

APW7301

Product Description

The APW7301 is a 3A synchronous buck converter IC with integrated 85mΩ power MOSFETs, designed to deliver a highly efficient and compact step-down power conversion solution. Supporting a wide input voltage range of 4.5V to 24V and an adjustable output voltage from 0.925V to 20V, it provides excellent output voltage regulation for a broad range of industrial, consumer, and embedded power supply applications.

• Part Number: APW7301
• Type: Synchronous Buck Converter IC
• Output Current: 3A
• Integrated MOSFETs: 85mΩ (On-Chip)
• Input Voltage Range: 4.5V to 24V
• Output Voltage Range: 0.925V to 20V (Adjustable)
• Control Scheme: Current-Mode Control
• Operating Mode: Automatic PFM/PWM
• Light Load Operation: PFM Mode (Reduced Switching Losses)
• Heavy Load Operation: PWM Mode
• Soft-Start: Yes (Programmable)
• Power-On-Reset: Yes
• Over-Temperature Protection: Yes
• Current Limit Protection: Yes
• Package: SOP-8P
