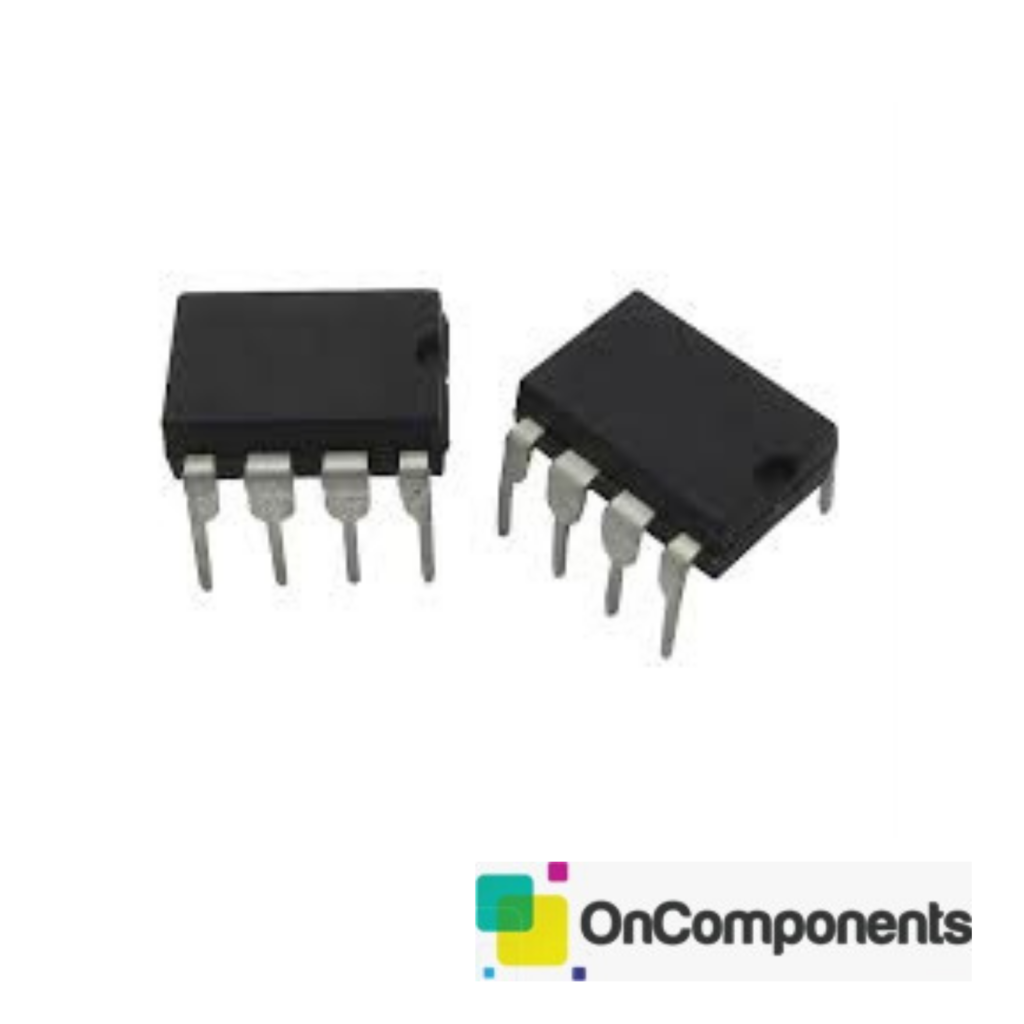

AQH2223 DIP

FEATURES
1. Compact DIP type SSR that?s ideal
for AC load control
2. Supports 0.3 A, 0.6 A, 0.9 A and
1.2 A ON-state RMS currents.
3. The 1.2 A type saves space with a
DIP 8-pin package.
4. Handles both 100 and 200 V AC
loads
This relay handles both voltages in a
single product. It is not necessary for
users that use both types to manage
separate part numbers.
5. High dielectric strength: 5,000 V AC
(between input and output)
6. Two types available: Zero-cross
type and Random type
TYPICAL APPLICATIONS
1. Home appliances (air conditioner,
microwave oven, washing machine,
personal hygiene system, refrigerator,
fan heater, inductive heating cooker,
rice cooker and humidifier, etc.)
2. Industrial equipment

Product Details

AQH Series

These compact DIP type PCB mount solid state relays are ideal for AC load control and have a high dielectric strength. Typical applications include home appliances and industrial equipment.

Compact DIP type SSR ideal for AC load control
Two types available, zero-cross (15V and 50V) and random types
High dielectric strength, 5000 Vac (between input and output)

Approvals

UL, C-UL, VDE
