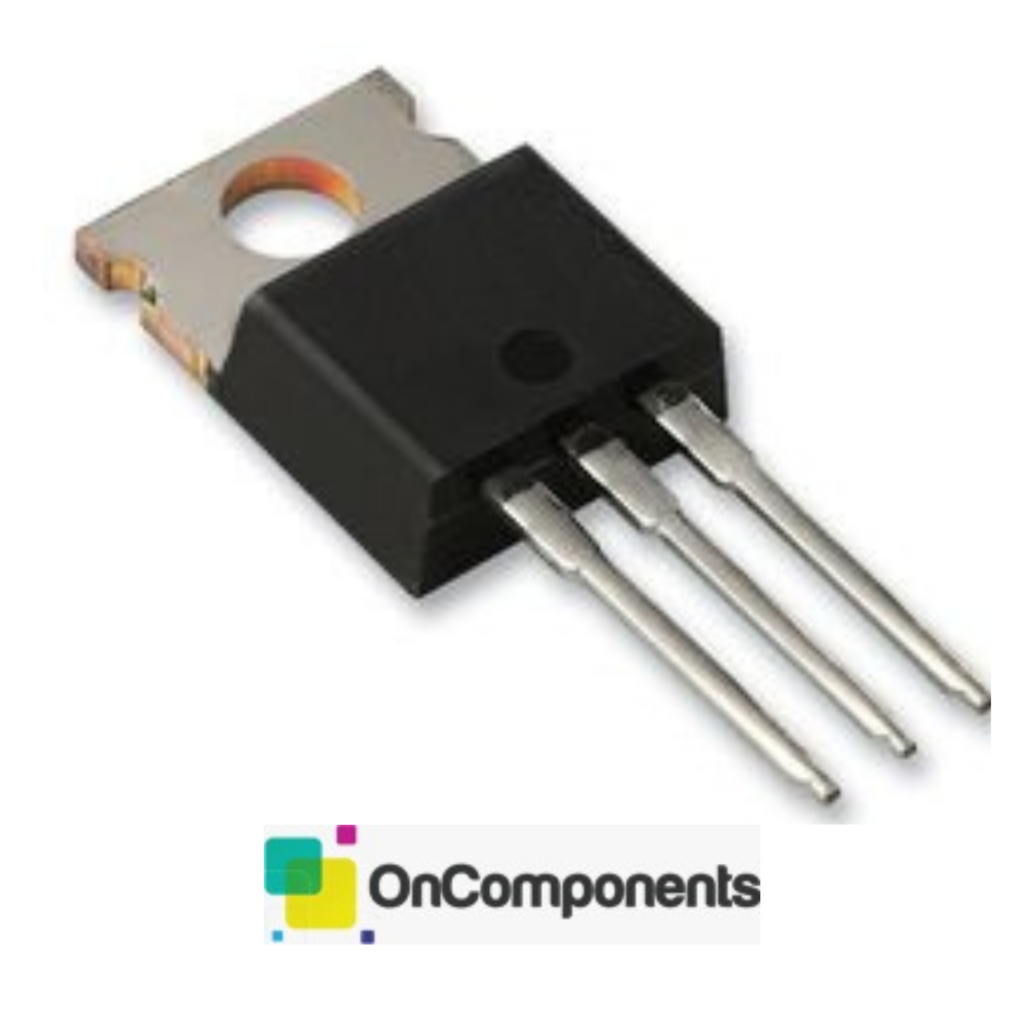

AUIRF6215 TO220 TRANSISTOR

Transistor Polarity:	P-Channel
Number of Channels:	1 Channel
Vds – Drain-Source Breakdown Voltage:	150 V
Id – Continuous Drain Current:	13 A
Rds On – Drain-Source Resistance:	580 mOhms
Vgs – Gate-Source Voltage:	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage:	4 V
Qg – Gate Charge:	66 nC
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 175 C
Pd – Power Dissipation:	110 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Packaging:	Tube
Configuration:	Single
Height:	15.65 mm
Length:	10 mm
Transistor Type:	1 P-Channel
Width:	4.4 mm
Brand:	Infineon / IR
Forward Transconductance – Min:	3.6 S
Fall Time:	37 ns
Product Type:	MOSFET
Rise Time:	36 ns
Factory Pack Quantity:	1000
Subcategory:	MOSFETs
Typical Turn-Off Delay Time:	53 ns
Typical Turn-On Delay Time:	14 ns
Unit Weight:	6 g
