Product Specification
| Maximum Operating Temperature | +125 Deg C |
| Rated Average On-State Current | 16 A |
| Mounting Type | Through Hole |
| Repetitive Peak Forward Blocking Voltage | 800 V |
| Repetitive Peak Reverse Voltage | 800 V |
| Pin Count | 3 |

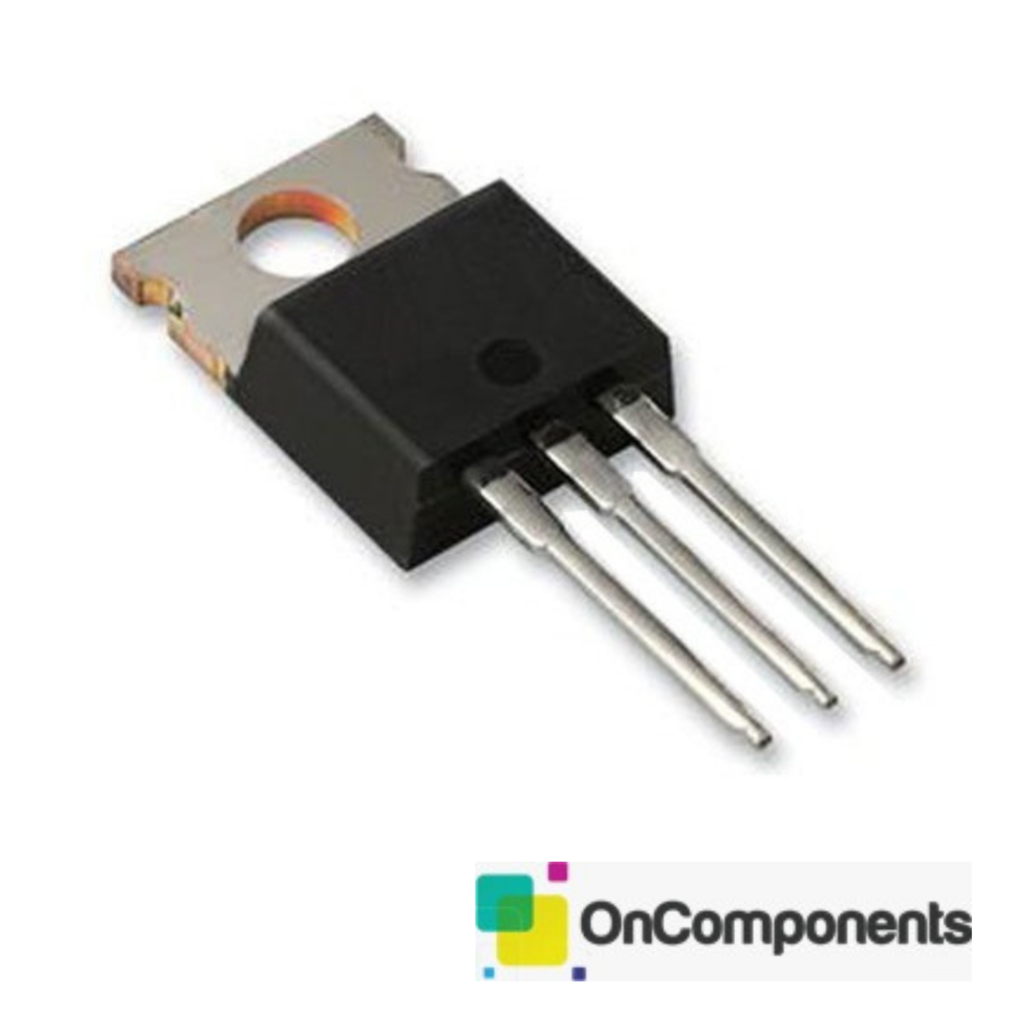

| Model | BTA16-800BW |
| Maximum Gate Trigger Current | 50 mA |
| Surge Current Rating | 168 A |
| Maximum Gate Trigger Voltage | 1.3 V |
| Maximum Holding Current | 50 mA |
| Peak On-State Voltage | 1.55 V |
| Repetitive Peak Off-State Current | 0.005 mA |
| Minimum Operating Temperature | -40 Deg C |
