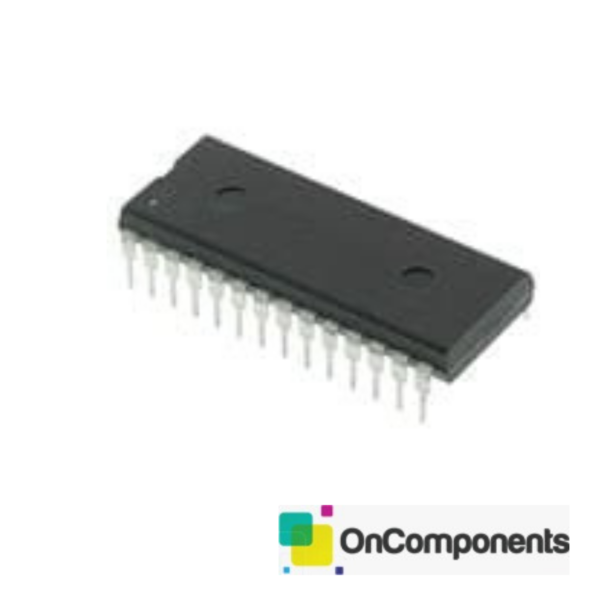

CAT28C17AL DIP

Description
The CAT28C17A is a fast, low power, 5 V?only CMOS Parallel
EEPROM organized as 2K x 8?bits. It requires a simple interface for
in?system programming. On?chip address and data latches, self?timed
write cycle with auto?clear and VCC power up/down write protection
eliminate additional timing and protection hardware. DATA Polling and
a RDY/BSY pin signal the start and end of the self?timed write cycle.
Additionally, the CAT28C17A features hardware write protection.
The CAT28C17A is manufactured using ON Semiconductor?s
advanced CMOS floating gate technology. It is designed to endure
10,000 program/erase cycles and has a data retention of 10 years. The
device is available in JEDEC approved 28?pin DIP and SOIC or
32?pin PLCC packages.

Features
? Fast Read Access Times: 200 ns
? Low Power CMOS Dissipation:
? Active: 25 mA Max.
? Standby: 100 A Max.
? Simple Write Operation:
? On?chip Address and Data Latches
? Self?timed Write Cycle with Auto?clear
? Fast Write Cycle Time: 10 ms Max
? End of Write Detection:
? DATA Polling
? RDY/BSY Pin
? Hardware Write Protection
? CMOS and TTL Compatible I/O
? 10,000 Program/Erase Cycles
? 10 Year Data Retention
? Commercial, Industrial and Automotive Temperature Ranges
