CNY17-2 OptoCoupler

Phototransistor Optocouplers

Features:
– High Isolation Voltage (5300 VAC RMS – 1 min. ; 7500 VAC PEAK – 1 min.)
– High BVCEO min. 70V
– Current Transfer Ratio in Selected Groups: 63% – 125%
– Max. Switching Time in Saturation Specified

Typical Specifications:
INPUT DIODE
Forward Voltage (IF = 60mA): 1.3V
Reverse Voltage (IA = 10uA): 15V
Junction Capacitance (VF = 0V, f = 1MHz): 50pF
Reverse Leakage Current (VR = 3.0V): 0.35uA
OUTPUT TRANSISTOR
DC Forward Current Gain (VCE = 5V, IC = 100uA): 500
Breakdown Voltage (BV CEO) (IC =1mA, IF = 0): 70V min
Leakage Current (I CEO) (VCE =10V, IF = 0): 5nA
Capacitance (C to E) (VCE = 0, f = 1MHz): 8pF

Applications:
– Power Supply Regulators
– Digital Logic Inputs
– Microprocessor Inputs
– Appliance Sensor Systems
– Industrial Controls

Manufactured by: QT Optoelectronics

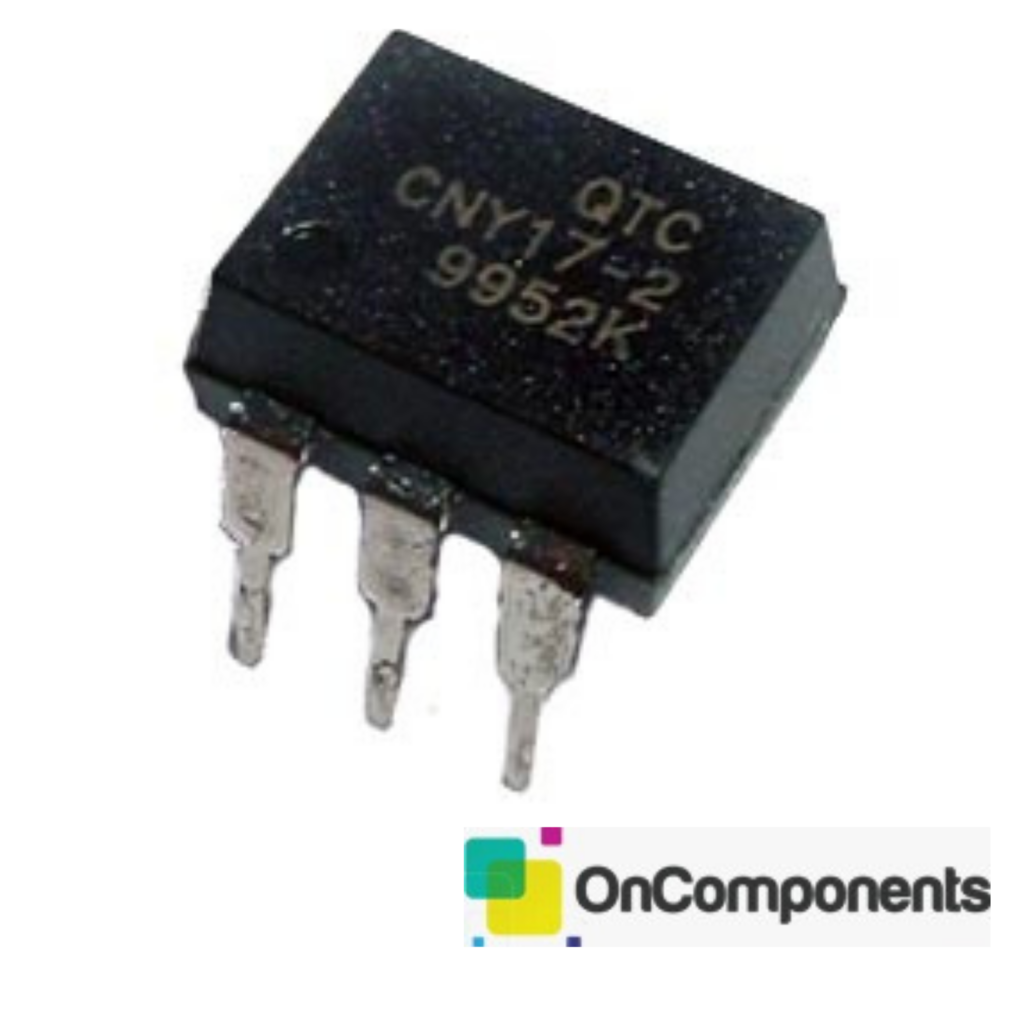

Part Number: CNY17-2
