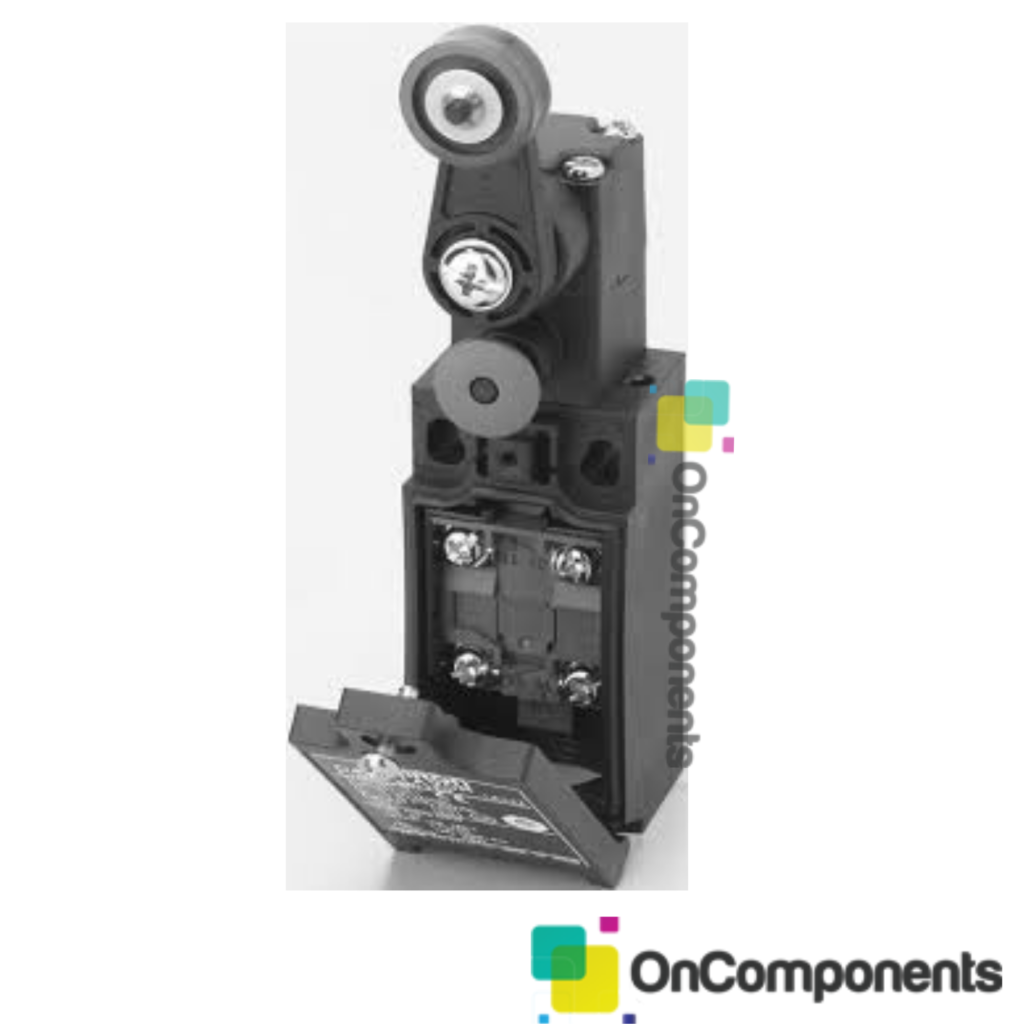

D4N-2B31R,SWITCH

New Series of manual-reset
Limit Switch
? Lineup includes three contact models with 2NC/1NO and
3NC contacts in addition to the 1NC/ 1NO, and 2NC version.
Version with MBB contacts meet applications for avdanced
requirements.
? M12-connector models are available, saving on labor and
simplifying maintenance.
? Standardized gold-clad contacts provide high contact reliability. Can be used with both standard loads and microloads.
? Free of lead, cadmium, and hexavalent chrome, reducing the
burden on the environment.
? Conforms to EN115 and EN81-1.

1. Conduit/Connector size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
3: 1/2-14NPT (1-conduit)
4: M20 (1-conduit)
5: Pg13.5 (2-conduit)
6: G1/2 (2-conduit)
7: 1/2-14NPT (M20 2-conduit with 1/2-14NPT changing adaptor
included)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
A: 1NC/1NO (slow-action)
B: 2NC (slow-action)
C: 2NC/1NO (slow-action)
D: 3NC (slow-action)
3. Head and Actuator
20:Roller lever (resin lever, resin roller)
2G:Adjustable roller lever, form lock (metal lever, resin roller)
2H:Adjustable roller lever, form lock (metal lever. rubber roller)
31:Top plunger
32:Top roller plunger
62:One-way roller arm lever (horizontal)
72:One-way roller arm lever (vertical)
