CMOS High Performance Analog Multiplexers
8-Channel Single Ended

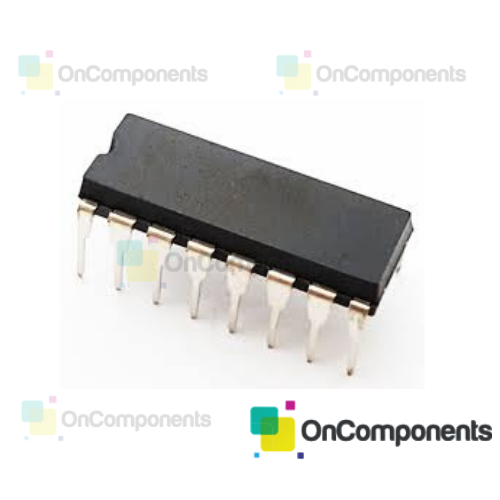

The DG408 is an 8-channel single-ended analog multiplexer designed to connect one of eight inputs to a common output as determined by a 3-bit binary address (A0, A1, A2).
Features:
– Low On-Resistance – rDS(on): 100 ohms
– Low Charge Injection – Q: 20 pC
– Fast Transition Time – tTRANS: 160 ns
– Low Power – ISUPPLY: 10uA
– 44 V Supply Max Rating
– TTL Compatible Logic
Maximum Ratings
Voltages Referenced to V-
V+: 44V
GND: 25V
Current (Any Terminal): 30mA
Peak Current, S or D (Pulsed at 1 ms, 10 % duty cycle max): 100mA
Power Dissipation: 450mW
Temperature Range: -40 to 85 Degrees C
Applications:
– Data Acquisition Systems
– Audio Signal Routing
– ATE Systems
– Battery Powered Systems
– Single Supply Systems
– Medical Instrumentation
Manufactured by: Vishay Siliconix
Part Number: DG408DJ
