FL110 SMD

Technical Specifications

Vishay?IRLL110PBF?technical specifications, attributes, and parameters.

Physical

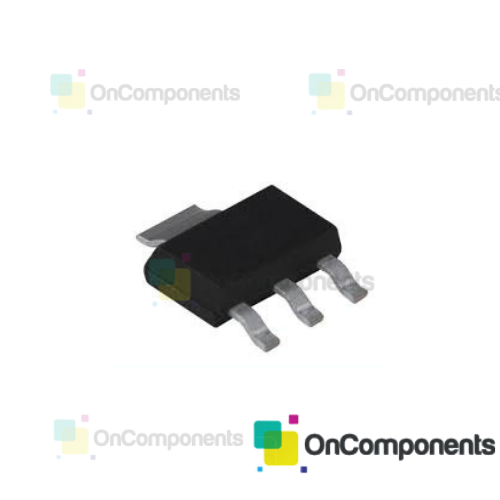

Case/Package SOT-223
Mount Surface Mount
Number of Pins 3
Weight 250.212891 mg
Technical
Continuous Drain Current (ID) 1.5 A
Current Rating 1.5 A
Drain to Source Breakdown Voltage 100 V
Drain to Source Resistance 540 m?
Drain to Source Voltage (Vdss) 100 V
Element Configuration Single
Fall Time 18 ns
Gate to Source Voltage (Vgs) 10 V
Input Capacitance 250 pF
Max Junction Temperature (Tj) 150 ?C
Max Operating Temperature 150 ?C
Max Power Dissipation 2 W
Min Operating Temperature -55 ?C
Number of Channels 1
Number of Elements 1
Power Dissipation 2 W
Rds On Max 540 m?
Resistance 540 m?
Rise Time 47 ns
Threshold Voltage 2 V
Turn-Off Delay Time 16 ns
Turn-On Delay Time 9.3 ns
Voltage Rating (DC) 100 V
Dimensions
Height 1.45 mm
Length 6.7 mm
Width 3.7 mm
Compliance
Lead Free Lead Free
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
