Features
? High Speed Operation: tpd = 10 ns typ (CL = 50 pF)
? High Output Current: Fanout of 10 LSTTL Loads
? Wide Operating Voltage: VCC = 2 to 6 V
? Low Input Current: 1 ?A max
? Low Quiescent Supply Current: ICC (static) = 1 ?A max (Ta = 25?C)
? Ordering Information
-Part Name Package Type Package Code
(Previous Code)
-Package
Abbreviation
-Taping Abbreviation
(Quantity)

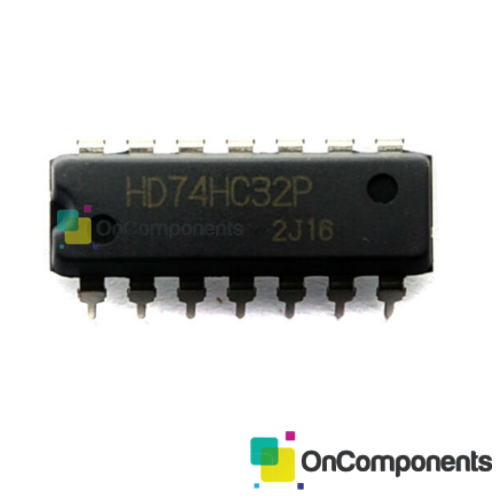

-HD74HC32P DILP-14 pin PRDP0014AB-B
(DP-14AV) P ?
-HD74HC32FPEL SOP-14 pin (JEITA) PRSP0014DF-B
(FP-14DAV) FP EL (2,000 pcs/reel)
-HD74HC32RPEL SOP-14 pin (JEDEC) PRSP0014DE-A
(FP-14DNV) RP EL (2,500 pcs/reel)
-HD74HC32TELL TSSOP-14 pin PTSP0014JA-B
(TTP-14DV) T ELL (2,000 pcs/reel)
