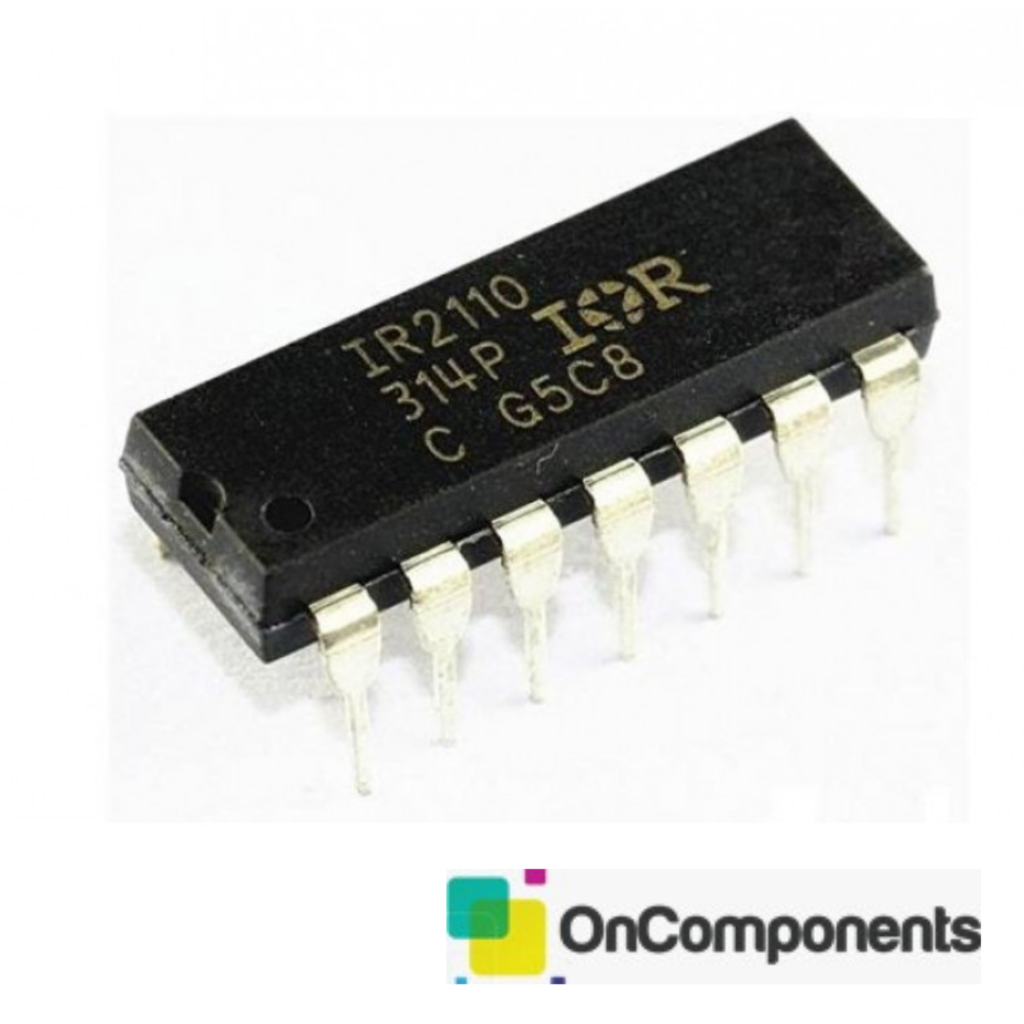

IR2110 DIP

Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout for both channels
3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ?5V offset
CMOS Schmitt-triggered inputs with pull-down
Cycle by cycle edge-triggered shutdown logic
Matched propagation delay for both channels
Outputs in phase with inputs
ParameterMinMaxUnitVB-High side floating supply voltage-0.3525VVS- High side floating supply offset voltageVB -25VB +0.3VVHO- High side floating output voltageVS -0.3VB +0.3VVCC- Low side and logic fixed supply voltage-0.325VVLO- Low side output voltage-0.3VCC+0.3VVDD-Logic supply voltage-0.3VSS+25V
