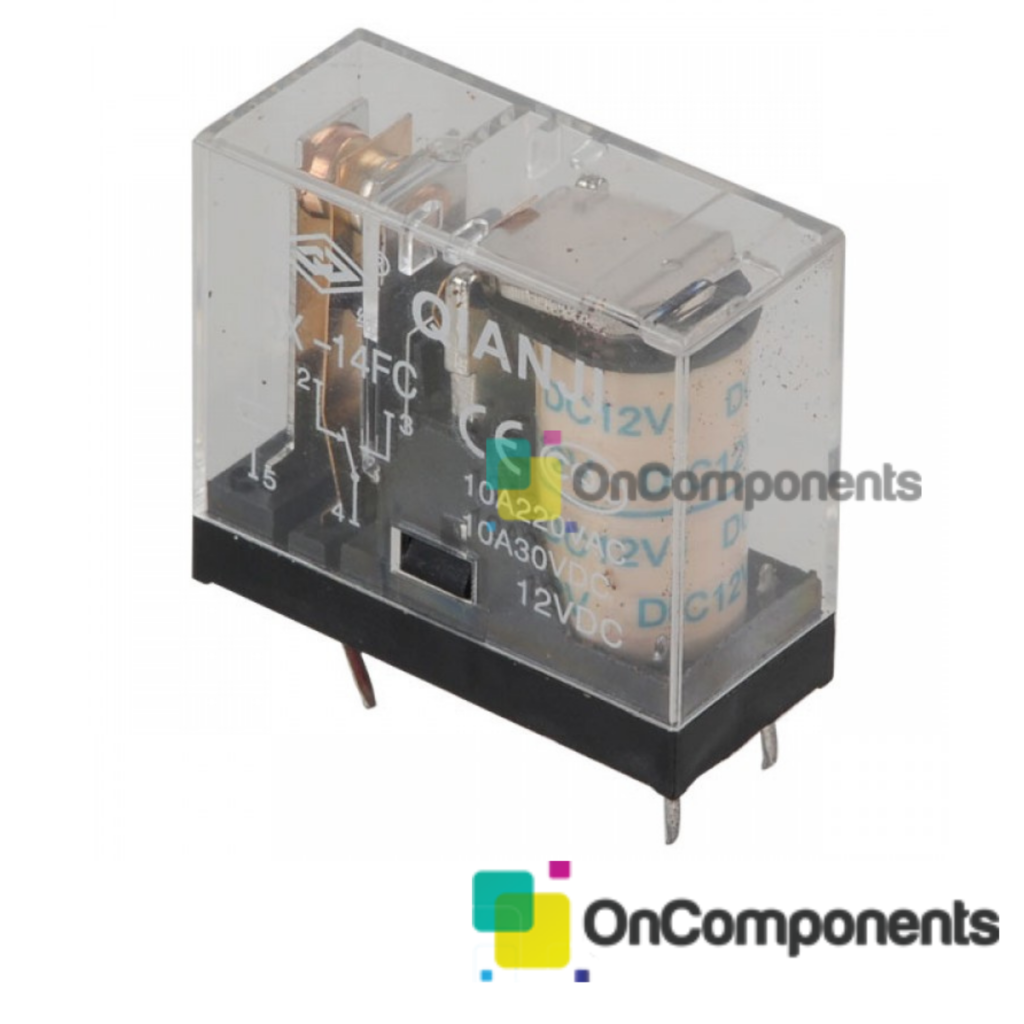

JQX-14FC-1Z 12VDC 5PIN PCB RELAY

JQX-14FC-1Z 12V  Power Relay 10A 12V, 5 Pins, DPDT. Type, Standard. Contact Form, DPDT. Pins, 5. Base Type, Square. Contact Amp Rating.

Specifications

• Model Number : JQX-14FC 1Z
• Theory : Electromagnetic Relay
• Contacts configuration : DPDT
• Protect Feature : Sealed
• Contact Load : High Power
• Contact Ratings : 1H, 1Z; 2H, 2Z
• Contact Resistance : 50Ω ( 1A 6VDC)
• Contact Material : Silver Alloy
• Maximum switching power: : 3840VA/480W
• Switching Voltage : 220V AC, 30V DC
• Coil current : 10A
• Number of pins : 8
• Insulation Resistance : 1000Ω  500VDC
• Operate Time : 15ms/5ms
• Terminal Type : PCB
• Nominal Coil Power : 0.55W
• Dimension : 40 x 18 x 34.5
• Weight : 35g
