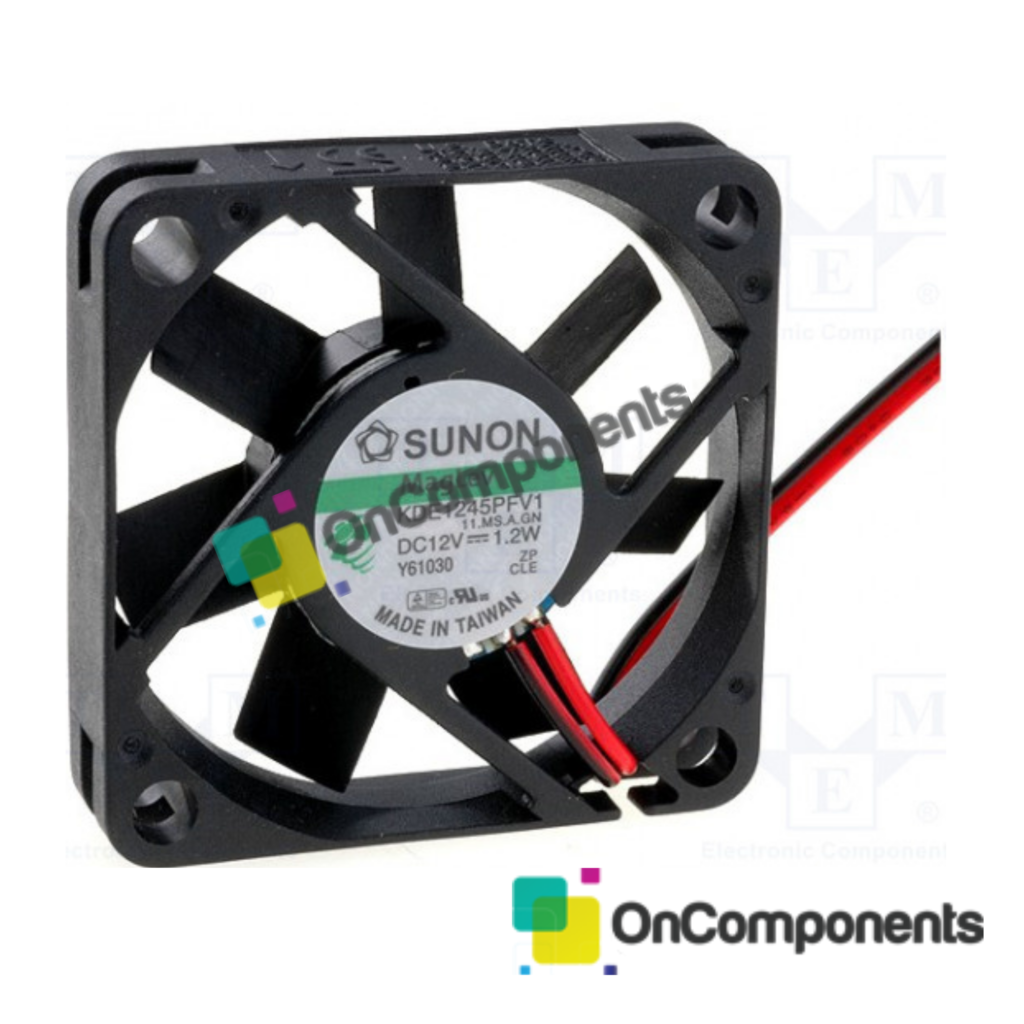

KDE1245PFV1 45X45X10MM 12VDC SUNON FAN

KDE1245PFV1 12VDC SUNON Fan, 45x45x10mm 1.2W, 0.1A, 32dBA, 6000 (±20%)rpm, 2 Lead Vapo bearing, Auto restarting KDE1245PFV1 Fan.

Specifications

• Manufacturer : SUNON
• Type of fan : DC
• Kind of fan : axial
• Operating voltage : 4.5…13.8V
• Power consumption : 1.2W
• Current rating : 0.1A
• Fan efficiency : 18.69m3/h
• Noise level : 32dBA
• Kind of Bearing : Vapo
• Rotational rate/speed : 6000 (±20%)rpm
• Current and power consumption tolerance : ±15%
• Min. insulation resistance : 500MΩ
• Impeller material : thermoplastic
• Enclosure material : thermoplastic
• Leads : 2 leads
• Operating temperature : -10…70°C
• Cable length : 300mm
• Additional functions : AutoStart
• Fan motor : brushless DC
• Wire size : 28AWG
• Static pressure : 4.32mm H2O
• Dimensions : 45x45x10mm
• Weight : 18.5g
