L297-IC

18.00 د.إ

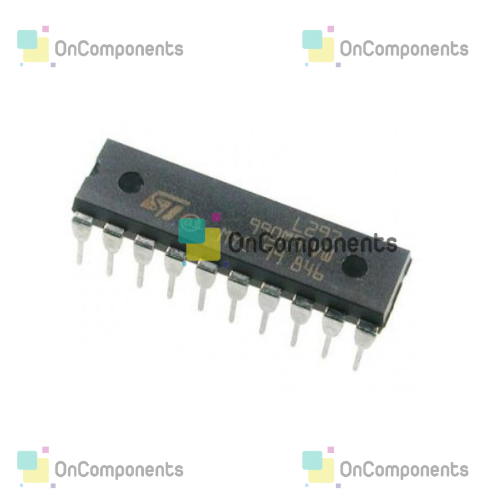

L297 Stepper Motor Controller IC

  • Normal/wave drive
  • Half/full step modes
  • Clockwise/anticlockwise direction
  • Switch mode load current regulation
  • Programmable load current
  • Few external components
  • Reset input & home output
  • Enable input

Specifications:-

Parameter Value Unit
Vs Supply voltage 10 V
Vi Input signals 7 V
Ptot Total power dissipation (Tamb = 70°C) 1 W
Tstg, Tj Storage and junction temperature -40 to 150 °C



The L297 Stepper Motor Controller IC generates four phase drive signals for two phase bipolar and four phase unipolar step motors in microcomputer controlled applications. The motor can be driven in half step, normal and wave drive modes and on chip PWM chopper circuits permit switch-mode control of the current in the windings. A feature of this device is that it requires only clock, direction and mode input signals. Since the phase are generated internally the burden on the microprocessor, and the programmer, is greatly reduced. Mounted in DIP20 and SO20 packages, the L297 can be used with monolithic bridge drives such as the L298N or L293E, or with discrete transistors and darlingtons.
