Technical Specifications

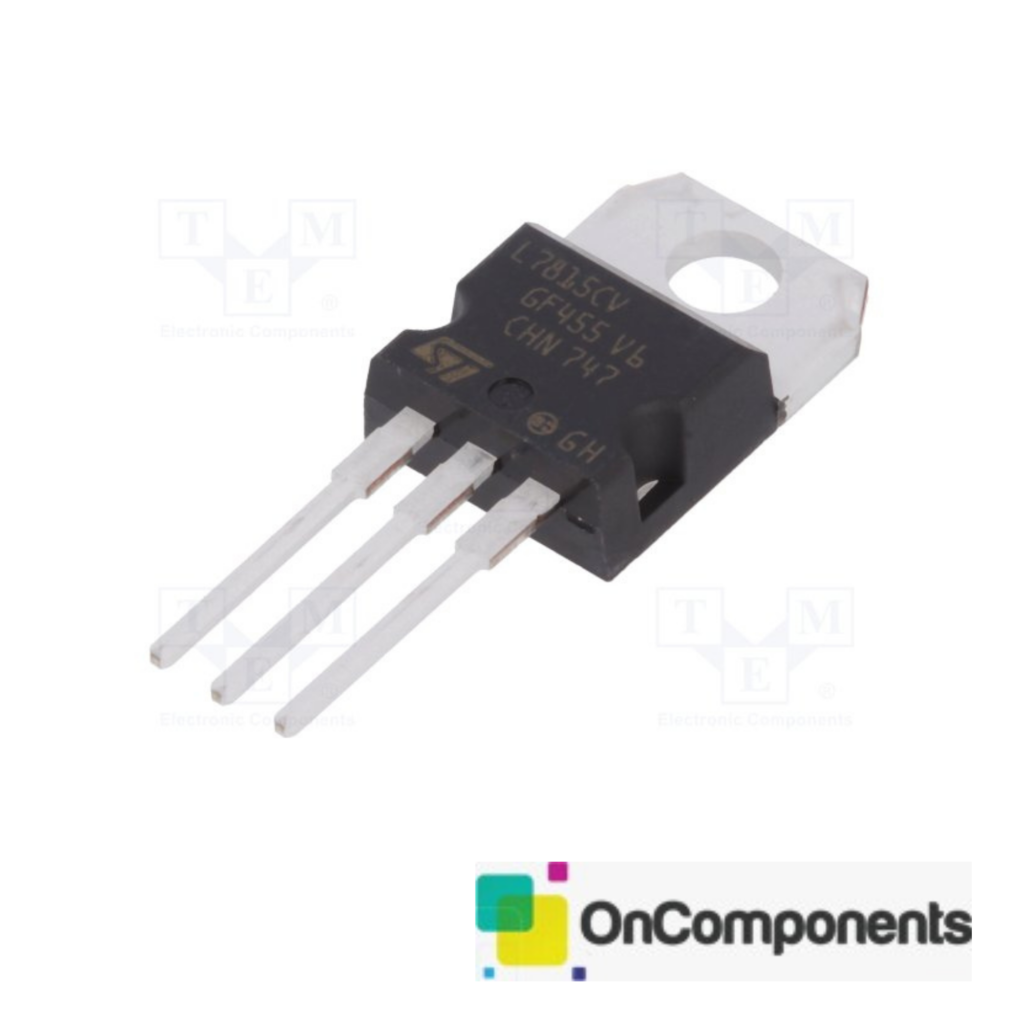

STMicroelectronics?L7815CV?technical specifications, attributes, and parameters.
| Supply Chain | |
|---|---|
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Physical | |
| Case/Package | TO |
| Contact Plating | Tin |
| Mount | Through Hole |
| Number of Pins | 3 |
| Weight | 4.535924 g |
| Technical | |
| Dropout Voltage | 2 V |
| Max Input Voltage | 35 V |
| Max Operating Temperature | 125 ?C |
| Max Output Current | 1.5 A |
| Min Input Voltage | 17 V |
| Min Operating Temperature | 0 ?C |
| Min Output Voltage | 15 V |
| Nominal Output Voltage | 15 V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5 A |
| Output Type | Fixed |
| Output Voltage | 15 V |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54 dB |
| Quiescent Current | 8 mA |
| Schedule B | 8542390000 |
| Tolerance | 5 % |
| Dimensions | |
| Height | 9.15 mm |
| Length | 10.4 mm |
| Width | 4.6 mm |
| Compliance | |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
