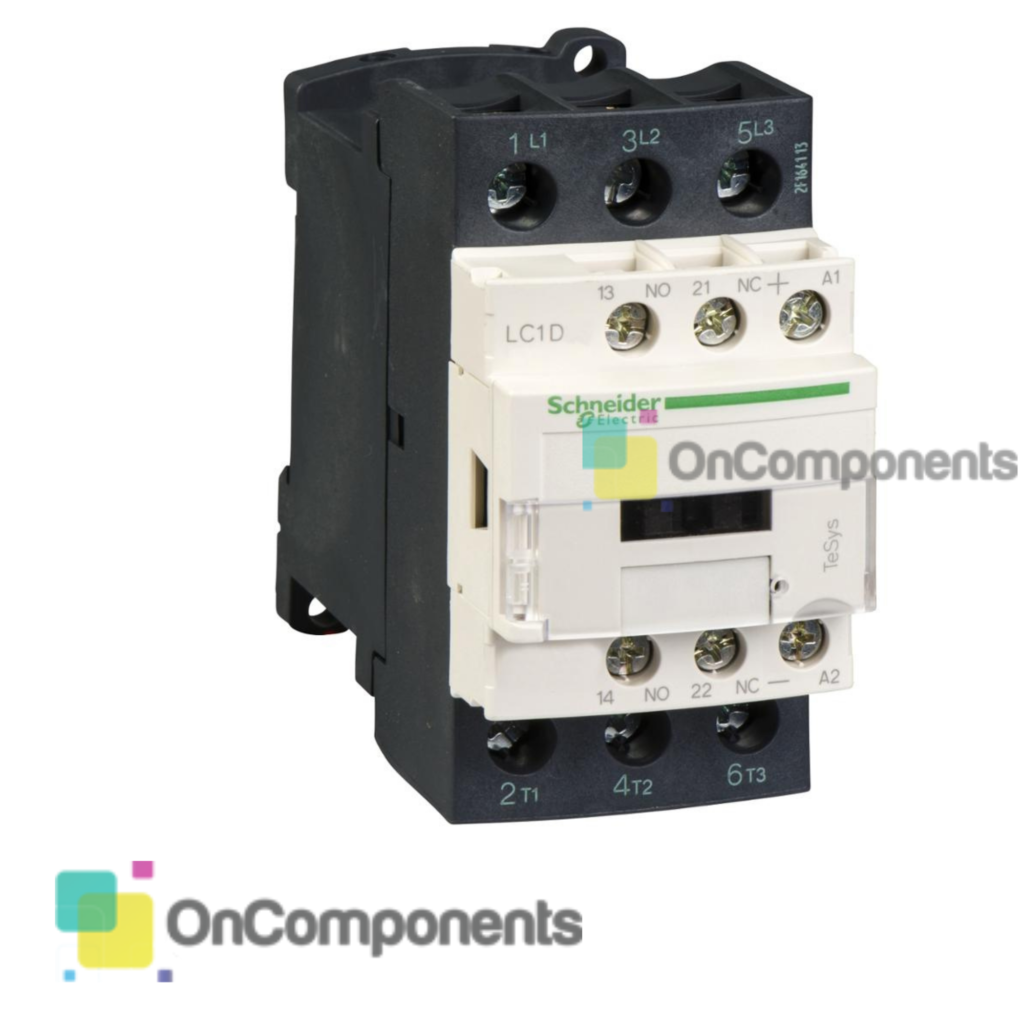

LC1D32MD Schneider Electric Contactor, 3 poles (3NO), for motor control applications up to AC-3- <=400VAC 32A/690V AC-3/3e (15kW@400V). It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts, connection by screw clamp terminal, LC1D32MD Schneider Contactor.
Specifications
- Brand : Schneider
- Model : LC1D32MD
- Product type : Contactor
- Contact Configuration : 3NO
- Number of Auxiliary Contacts : 2
- Coil Voltage : 220VDC
- Current Rating : 32A
- Number of poles : 3
- Mounting Style :DIN Rail
- Switch Type : Alternating Current
- Contact Voltage Rating : 690 V ac /dc
- Terminal Style : Screw Clamp
- Circuit Frequency : 25…400 Hz
- Minimum Switching Contact : 17V 5mA
- Operating Temperature : -40…+60 °C
- Dimension : 85 x 45 x 101 mm
- Weight : 540g
