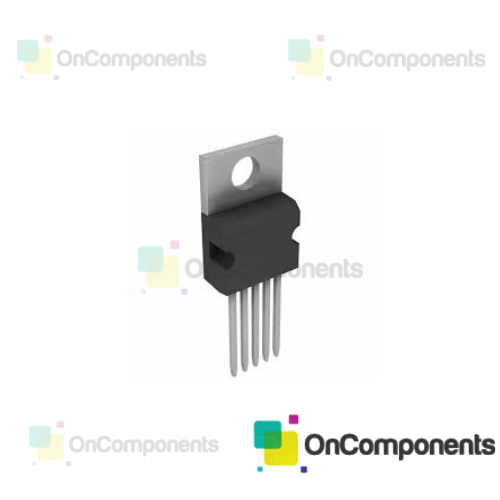

LM2576T TO-220 IC

Features
1? New product available: LMR33630 36-V, 3-A, 400-
kHz synchronous converter
? 3.3-V, 5-V, 12-V, 15-V, and adjustable output
versions
? Adjustable version output voltage range: 1.23 V to
37 V (57 V for HV version) ?4% maximum over
line and load conditions
? Specified 3-A output current
? Wide input voltage range: 40 V Up to 60 V for HV
version
? Requires only four external components
? 52-kHz Fixed-frequency internal oscillator
? TTL-shutdown capability, low-power standby
mode
? High efficiency
? Uses readily available standard inductors
? Thermal shutdown and current limit protection
? Create a Custom Design with WEBENCH Tools
2 Applications
? Motor drives
? Merchant network and server PSU
? Appliances
? Test and measurement equipment
?Description
The LM2576 series of regulators are monolithic
integrated circuits that provide all the active functions
for a step-down (buck) switching regulator, capable of
driving 3-A load with excellent line and load
regulation. These devices are available in fixed output
voltages of 3.3 V, 5 V, 12 V, 15 V, and an adjustable
output version
