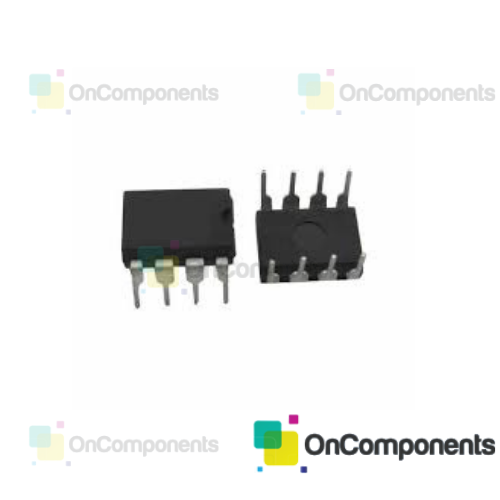

MC33153 DIP

Single IGBT Gate Driver
The MC33153 is specifically designed as an IGBT driver for high
power applications that include ac induction motor control, brushless
dc motor control and uninterruptable power supplies. Although
designed for driving discrete and module IGBTs, this device offers a
cost effective solution for driving power MOSFETs and Bipolar
Transistors. Device protection features include the choice of
desaturation or overcurrent sensing and undervoltage detection. These
devices are available in dual?in?line and surface mount packages.
Features
? High Current Output Stage: 1.0 A Source/2.0 A Sink
? Protection Circuits for Both Conventional and Sense IGBTs
? Programmable Fault Blanking Time
? Protection against Overcurrent and Short Circuit
? Undervoltage Lockout Optimized for IGBT?s
? Negative Gate Drive Capability
? Cost Effectively Drives Power MOSFETs and Bipolar Transistors
? This is a Pb?Free and Halide?Free Device
