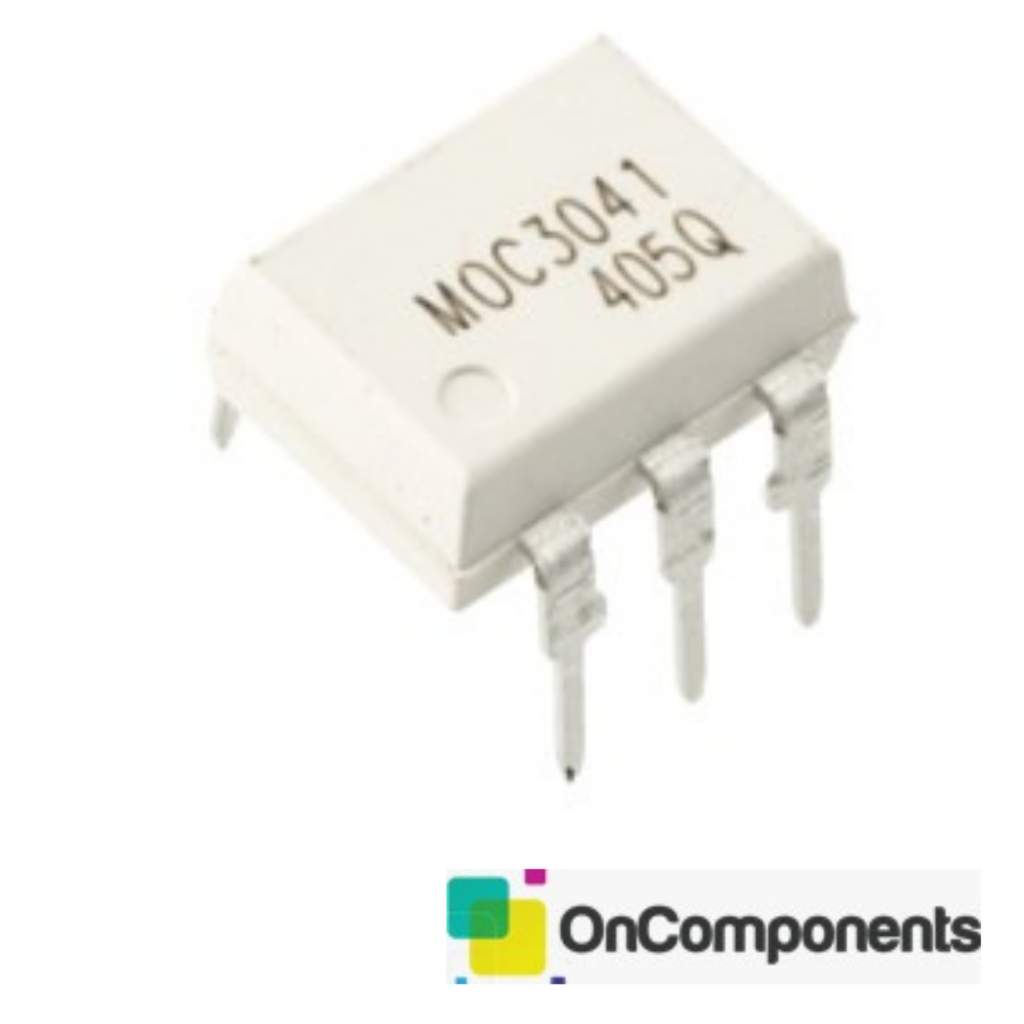

| Pin Number | Pin Name | Description |
| 1 | Anode (A) | Anode pin of the IR LED. Connected to logic input |
| 2 | Cathode (C) | Cathode pin of the IR LED |
| 3 | NC | No Connection – Cannot be used |
| 4 | Triac Main Terminal 1 | One end of the Triac which is present inside the IC |
| 5 | NC | No Connection ? Cannot be used |
| 6 | Triac Main Terminal 2 | Other end of the Triac which is present inside the IC |
Note:?More details can be found at the MOC3041 datasheet which is available for download at the end of this page.
Equivalent for MOC3041:?MOC3021?(pin to pin compatible)
Alternatives Opto-couplers:?MCT2E?(non-Zero transistor), FOD3180 (High-Speed MOSFET),?6N137(Highg-Sped NAND),?4N25
