- Meet or Exceed the Requirements of ANSI Standard EIA/TIA-422-B, RS-423-B, and RS-485
- Meet ITU Recommendations V.10, V.11, X.26, and X.27
- Designed for Multipoint Bus Transmission on Long Bus Lines in Noisy Environments
- 3-State Outputs
- Common-Mode Input Voltage Range -12 V to 12 V
- Input Sensitivity…?200 mV
- Input Hysteresis…50 mV Typ
- High Input Impedance…12 k
?Min - Operate From Single 5-V Supply
- Low-Power Requirements
- Plug-In Replacement for MC3486
Previous product
Back to products
P12NM50
25.00 AED – 48.00 AED
Next product
HEP-100-48A-MEANWELL
320.00 AED

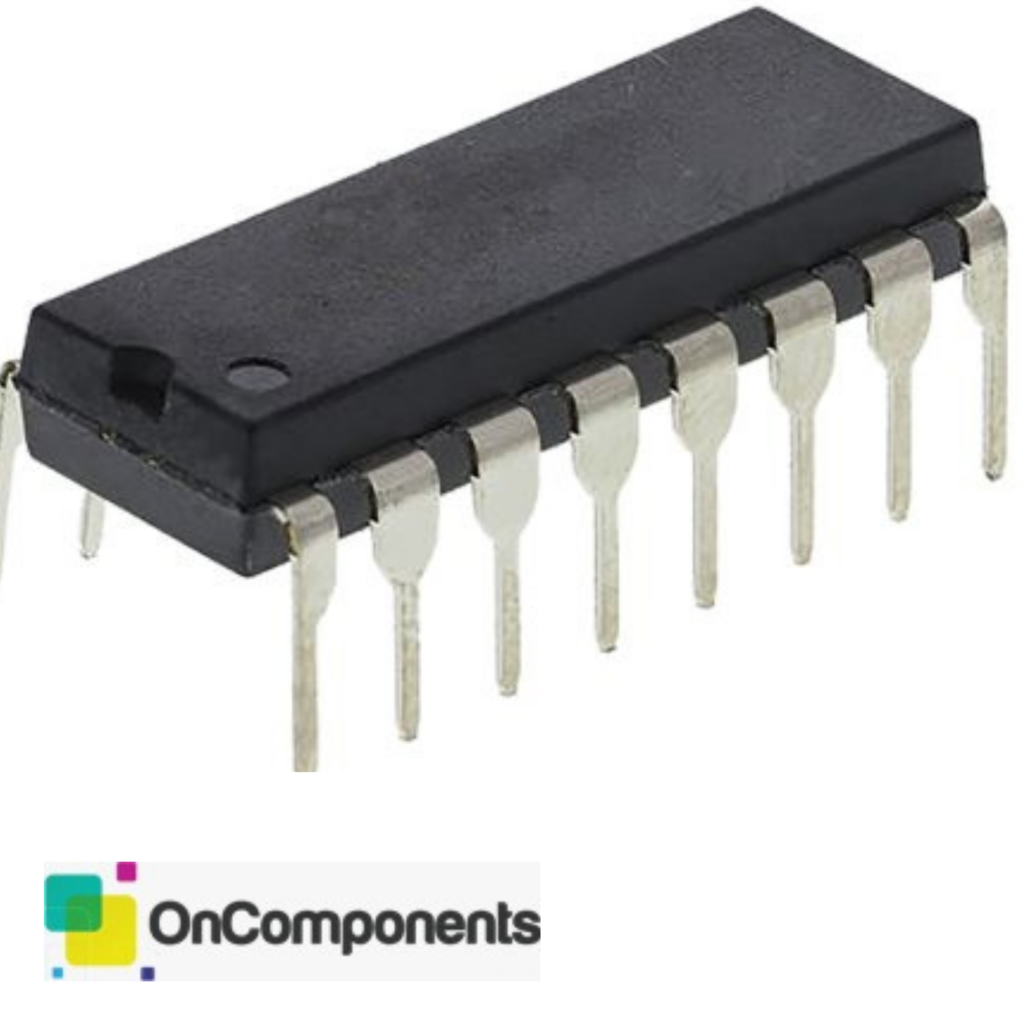

SN75175N
36.00 AED – 120.00 AED
The SN65175 and SN75175 are monolithic quadruple differential line receivers with 3-state outputs. They are designed to meet the requirements of ANSI Standards EIA/TIA-422-B, RS-423-B, and RS-485, and several ITU recommendations. These standards are for balanced multipoint bus transmission at rates up to 10megabits per second. Each of the two pairs of receivers has a common active-high enable.
The receivers feature high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ?200 mV over a common-mode input voltage range of ?12 V. The SN65175 and SN75175 are designed for optimum performance when used with the SN75172 or SN75174 quadruple differential line drivers.
The SN65175 is characterized for operation from -40?C to 85?C. The SN75175 is characterized for operation from 0?C to 70?C.
Description
Additional information
| pack | pack of 10, pack of 3, pack of 5 |
|---|
