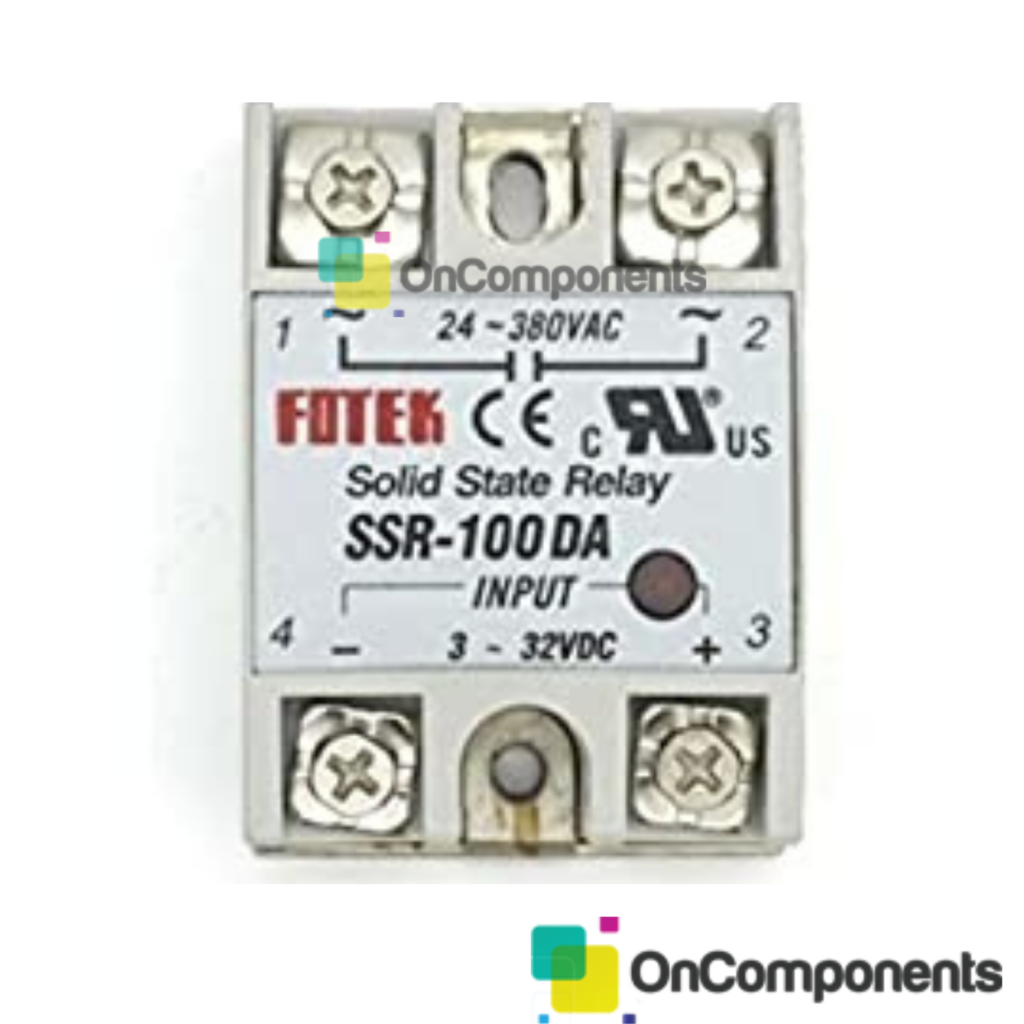

| Type | SSR-100DA | SSR-100AA | SSR-100DD |
| Control methods | DC – AC | AC – AC | DC – DC |
| Load current | 10A | 10A | 10A |
| Load voltage | 24~380VAC | H:90~480VAC | 5~60VDC, 5~110VDC, 5~250VDC |
| Input control voltage | 3~32VDC | 80~250VAC | 3~32VDC |
| Control current | DC: 3~25mA | AC: 12mA | 6~50mA |
| On voltage | ?1.5VAC | ?1.5VAC | ?2.3VDC |
| Off leakage current | ?2mA | ?2mA | ?2mA |
| On-off time | ?10ms | ?10ms | ?10ms |
| Dielectric strength | 2500VAC | 2500VAC | 2000VAC |
| Insulation resistance | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?500M?/500VDC | ||
| Ambient temperature | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?- 30?c ~ +75?c | ||
| Mounting methods | ? ? ? ? ? ? ? ? ? ? ? ? ? ?Bolt fixed | ||
| The work instructions | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?LED | ||
| Weight | 90g(10A,15A) | 135g(above 40A) | 132g |
