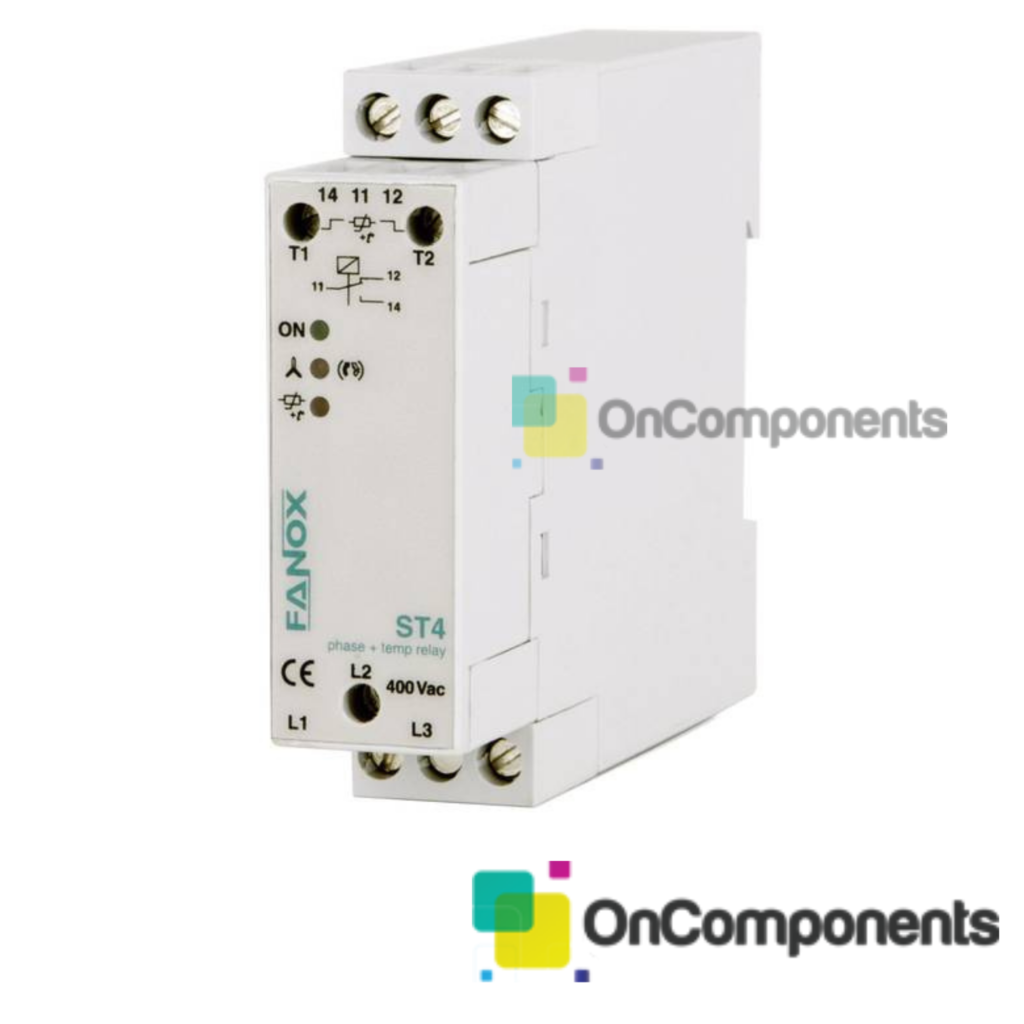

ST4-12012 PHASE+THERMISTOR FANOX CONTROLLER

900.00 د.إ

ST4/12012 phase + Thermistor fanox controller 2A 3 x 400 V/relay 250 V Output Power Relay. Suitable for motors with built-in PTC sensors in applications such as elevators, cranes, hoists and similar installations.

Specifications
  • Brand : Fanox
  • Model : 12012 ST4
  • Product Type : Monitoring relay
  • Operating voltage : Power is supplied via the switching voltage
  • Switching current : 2A ( max )
  • Switching voltage : 3 x 400 V/relay 250 V
  • Mounting Type : DIN rail mounting
  • Contact type : 1 change-over
  • Functions : Phase sequence, Phase asymmetry, Phase error
  • Temperature range : -15 – +60 °C
  • Dimension : 100 x 40 x 80 mm
  • Weight : 130g
Features
  • Protection against phase imbalance, phase loss, phase sequence and overtemperature.
  • To protect three phase devices.
  • Monitoring of short circuit and broken wire in PTC circuit.
  • Self-powered by voltage to be monitored.
  • Visual indication of tripping cause.
  • DIN rail mounting.
  • Installation of elevators, cranes, hoists and similar.
