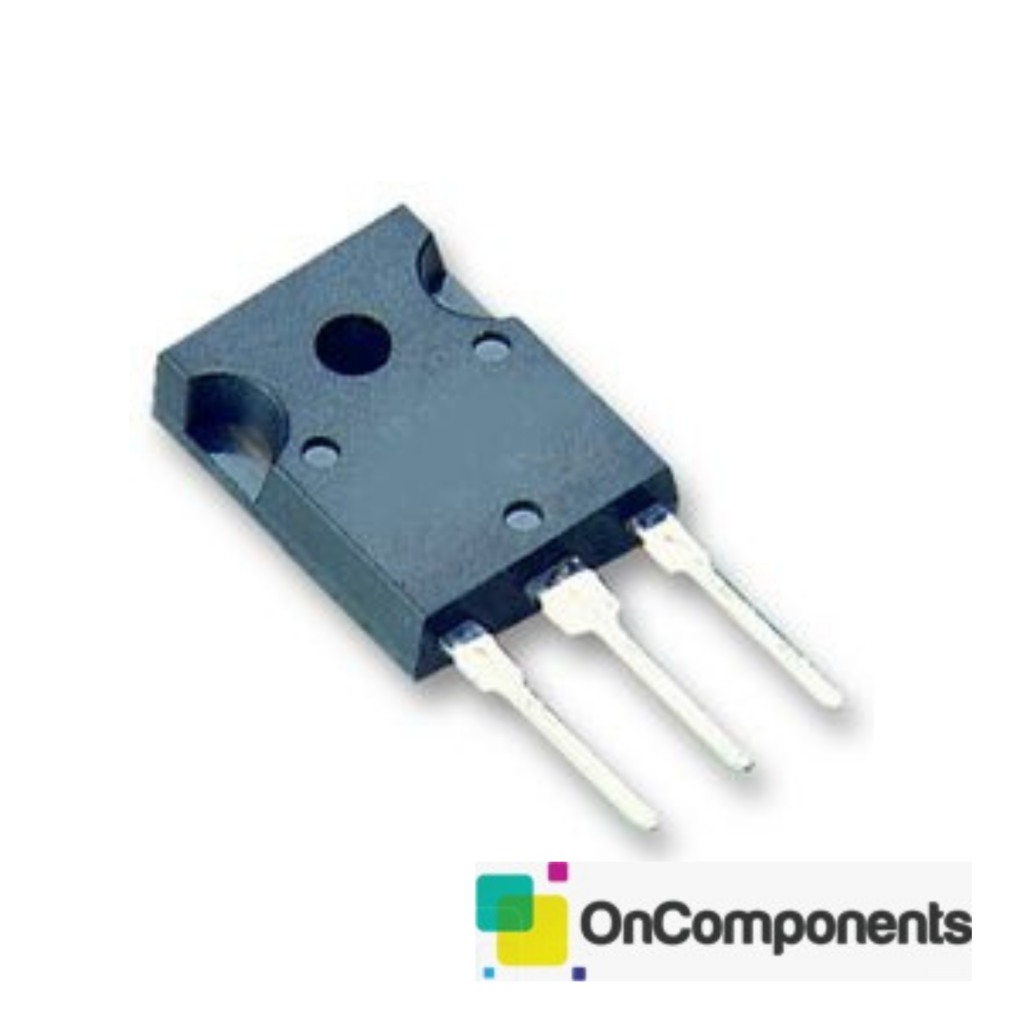

STTH60P03SW DIODE

Features
? Ultrafast recovery allowing high sustain
frequency
? Decrease charge evacuation time in the
inductance
? Minimize switching-on and total power losses
? Increase luminous efficiency and brightness
? Soft and noise-free recovery
? High surge capability
? High junction temperature
Description
The STTH60P03SW is an ultrafast recovery
power rectifier dedicated to energy recovery in
PDP application.
The key parameters of the DERC diode for the
energy recovery circuit have been optimized to
decrease power losses.

Repetitive Reverse Voltage Vrrm Max:?300V
Forward Current If(AV):?60A
Diode Configuration:?Single
Forward Voltage VF Max:?1.5V
Reverse Recovery Time trr Max:?-
Forward Surge Current Ifsm Max:?250A
Operating Temperature Max:?175?C
Diode Case Style:?TO-247
No. of Pins:?3Pins
Product Range:?-
Automotive Qualification Standard:
