T40HFL100S05 -MODULE

Product Description

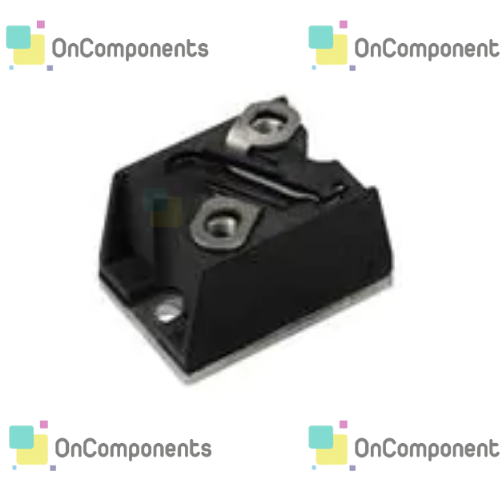

The T40HFL100S05 is a single fast recovery rectifier diode from Vishay Semiconductors, rated at 40A forward current and 1kV reverse voltage. Housed in a robust D-55 screw mount package, it is designed for high-frequency rectification, freewheeling, and snubber applications in industrial power electronics and motor drive systems.

• Part Number: T40HFL100S05
• Manufacturer: Vishay Semiconductors
• Type: Fast Recovery Rectifier Diode
• Configuration: Single
• Forward Current (If): 40A
• Reverse Voltage (Vr): 1kV (1000V)
• Forward Voltage (Vf): 1.6V
• Max Surge Current: 500A
• Reverse Current (Ir): 100µA
• Recovery Time: 110ns
• Package: D-55
• Mounting Style: Screw Mount
• Operating Temperature: -40°C to +125°C
• Dimensions (L x W x H): 41mm x 27mm x 25mm
• Unit Weight: 54g
