TLE4274V50

Features
? Output voltage 5 V, 8.5 V or 10 V
? Output voltage tolerance ? ?4%
? Current capability 400 mA
? Low-drop voltage
? Very low current consumption
? Short-circuit proof
? Reverse polarity proof
? Suitable for use in automotive electronics
? Green Product (RoHS compliant) version of TLE 4274
? AEC qualified
Functional Description

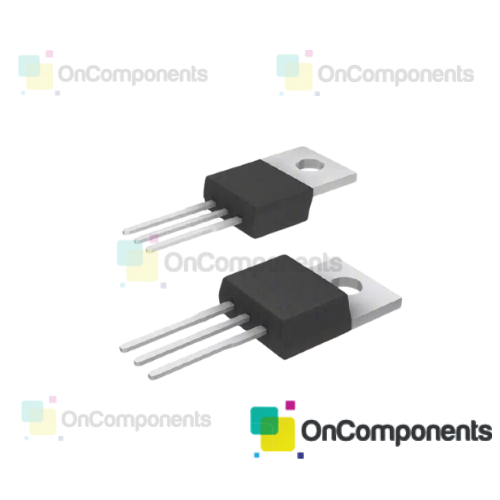

The TLE 4274 is a low drop voltage regulator available in
a TO220, TO252 and TO263 package. The IC regulates
an input voltage up to 40 V to VQrated = 5.0 V (V50), 8.5 V
(V85) and 10 V (V10). The maximum output current is
400 mA. The IC is short-circuit proof and incorporates
temperature protection that disables the IC at
overtemperature. A 3.3 V and 2.5 V version is also
available. For information about the low output voltage
types please refer to the data sheet TLE 4274 / 3.3 V;
2.5 V.
