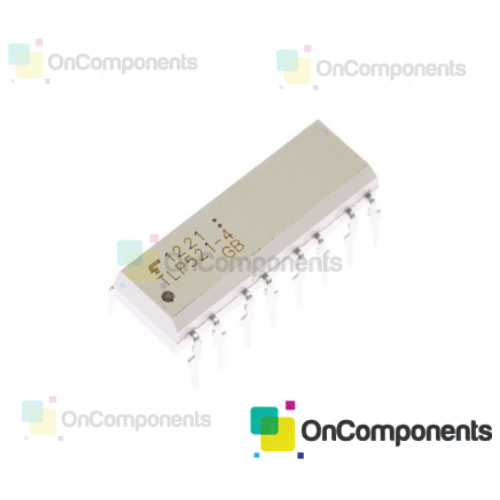

TLP521-4 DIP

The TOSHIBA TLP521?1, ?2 and ?4 consist of a photo?transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP521?2 offers two isolated channels in an eight lead plastic DIP package, while the TLP521?4 provides four isolated channels in a sixteen plastic DIP package.

Specifications:

• No. of Channels: 4 Channel
• Optocoupler Case Style: DIP
• No. of Pins: 16Pins
• Forward Current If Max: 25mA
• Isolation Voltage: 2.5kV
• Forward Diode Voltage: 1V to 1.3V
• Current transfer ratio: 50%
• Operating Temperature: -25?C to +85?C
