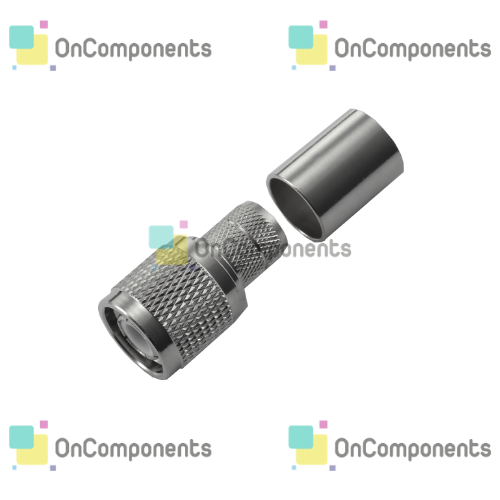

RF Connector Technical Data
| Series |
TNC
|
Body Shape |
Straight
|
| Gender |
Male
|
Mounting |
Free Hanging
|
RF Performance
| Operating Freq. Range | 0 to 4.00 GHz | Input Impedance |
50 Ω
|
| VSWR | No Data | Insertion Loss |
0.20 dB
|
Physical Characteristics
| Body Material(s) |
Brass
|
Contact Material(s) |
Brass
|
| Body Plating |
Nickel
|
Contact Plating |
Gold
|
| Dimensions |
26 x 15 mm (L x ø)
|
Operating Temperature | -40 to 60 °C |
| Weight |
18.75 g
|
Mating Cycles | >500 |
