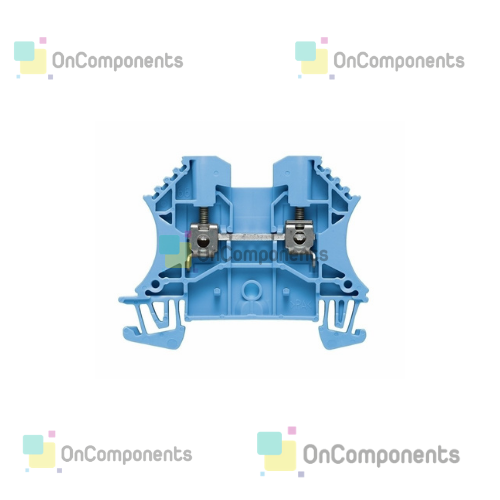

The Klippon WDU2.5 BL is part of the W series of terminal blocks from Weidmuller, with clamping yoke connections. It is a 1 tier, feed-through terminal block designed to be reliable and safe.
Product Range: W
Levels: 1
Positions: 2 Ways
Technical Summary
Dimensions: 5.1mm x 60mm x 46.5mm (W,H,D)
Wire Size: 30 AWG (min) to 12 AWG (max)
Conductor Area: 2.5mm?
Wire Connection: Screw
Rated Voltage: 800V
Rated Current: 24A
Colour: Blue
Full Technical Data available on Specification Tab
